RP6v2 I2C-Portexpander: Hardware

In diesem Projekt soll eine "Exp" (Experimentierplatine, CONRAD 191537) für den RP6v2 (natürlich auch für den RP6) "gebaut" werden, auf der zuerst mit dem IC PCF8574 ein I2C-Portexpander realisiert werden soll. Mit den 8 neu gewonnenen I/O-Ports kann z.B. ein LC-Display betrieben werden. Für die Teile, die man für das ganze Projekt braucht, werden Bestell-Nummern vom großen C angegeben. Natürlich gibt es auch andere Versender, bei denen es evtl. günstiger wird.

Das Projekt wird in 3 Abschnitten ("Phasen") vorgestellt. Wer mitbauen will, kann auch schon nach der ersten oder zweiten Phase aussteigen, weil jeder Abschnitt ohne die folgenden Abschnitte funktioniert.

So werden die 3 Phasen aussehen:

  • Phase 1 -> Aufbau des PCF8574 (8 I/O-Ports) mit Wannenstecker für ein LCD
  • Phase 2 -> Aufbau des PCF8591 (4 AD- und 1 DA-Wandler) mit Wannenstecker für die AD-/DA-Ports
  • Phase 3 -> Aufbau eines 24LCXXX-P (I2C-EEPROM) z.B. zur Speicherung von Messdaten


Was braucht man allgemein für den Aufbau einer Schaltung auf der Exp:

  • Seitenschneider, Schere, Zange
  • Lötkolben 25..30 Watt, Lötzinn
  • Plastik 70 Schutzlack (CONRAD 813621)
  • Isolierter Schaltdraht YV 0,20 mm² (CONRAD 606065)
  • Versilberter CU-Draht 0,6 mm (CONRAD 605581)

Mit dem versilberten CU-Draht stellt man auf der Unterseite (= Lötseite) der Exp Verbindungen zwischen den Bauteilen her; mit dem isolierten Schaltdraht werden Drahtbrücken auf der Oberseite (= Bestückungsseite) der Exp eingesetzt. Die Lage der Verbindungen zeige ich im Bestückungsplan jeder Phase. Man muss sich nicht an die genaue Lage der Verbindungen halten.

Wenn man die Drähte und Bauteile an anderen Positionen einlötet, kann es aber sein, dass man die nächste Phase nicht mehr so aufbauen kann, wie ich das hier zeige! Möglicherweise sind die weiteren Teile dann nur noch mit einer "wilden" Freiverdrahtung machbar!


Phase 1

In der Phase 1 wird das PHILIPS Portexpander-IC PCF8574AP oder PCF8574P mit seinen Verbindungen zu einem 14-poligen Wannenstecker als Anschluß für ein LCD aufgebaut. Alle RP6 Displays können hier direkt angeschlossen werden.

Man braucht folgende Bauteile (Bestell-Nummern CONRAD) für die 1. Phase:

Anzahl Bestell-Nr. Bauteil-Bezeichnung:
1 191537 RP6 Experimentierplatine
1 Reichelt IC PCF8574AP ODER
1 Reichelt IC PCF8574P
1 189626 IC Sockel DIL 16-polig
1 741687 Wannenstecker gerade, 2 x 7-polig
1 741119 1-reihige Stiftleiste RM 2,54 mm (36-polig)
1 742902 Vier Codierbrücken (aus Set)
1 403296 Kohleschicht-Widerstand 2,2 kOhm (1/4 W)
1 430730 Trimmpoti stehend 10 kOhm (2,5 x 5 mm)
1 500812 Keramik Kondensator 100 nF

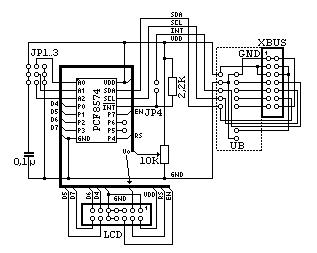

Hier erst einmal der Schaltplan:

RP6v2 Portexpander SP 1.JPG

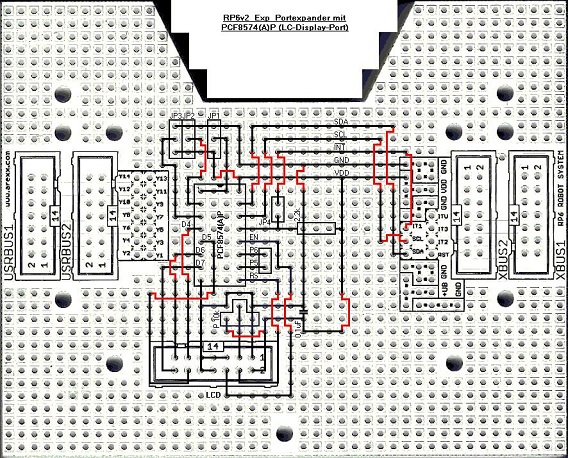

Und dann der Bestückungsplan:

RP6v2 Portexpander 1.JPG

Ich habe die Drahtbrücken aus isoliertem Schaltdraht (es sind 17) rot eingezeichnet. Sie werden auf der Oberseite der Experimentierplatine bestückt!

Viel Erfolg beim Aufbau!

Testen, ob die Schaltung grundsätzlich funktioniert, kann man mit der Demo "RP6Base_I2CMaster_01.c" aus den RP6v2 Examples. Die Demo zeigt ein Lauflicht, wenn man 8 LEDs an die Ausgangs-Ports des PCF8574 anschließt. Man sollte dazu low-current LEDs (z.B. rot 145998, grün 145971, gelb 145980) mit Vorwiderstand jeweils 1,5 kOhm (403270) an die Ausgänge anschließen,- Kathode an den Ausgang und Anode über Vorwiderstand an VDD. Die Ausgänge des PCF8574 sind zu finden an den Pins 4 (P4), 6 (P7), 11..14 (P0..P3) des LCD-Wannensteckers und an der 2-poligen Stiftleiste neben dem IC, beschriftet mit P5 P6. Auf die Jumper JP1..3 werden 3 Codierbrücken so aufgesteckt, dass die Adresseingänge des PCF8574 (A0..A2) mit GND verbunden sind (Position zum oberen Platinenrand). JP4 wird nicht aufgesteckt (INT nicht genutzt). Wenn der PCF8574AP eingesetzt wird, kann die I2C-Adresse im Demoprogramm "RP6Base_I2CMaster_01.c" unverändert bleiben. Wird jedoch der Typ PCF8574P verwendet, muss die I2C-Adresse geändert werden:

#define PCF8574_8LEDS_ADR  0x40

Später soll natürlich auch ein LCD angesteuert werden! Geduld ...


Phase 2

In der Phase 2 wird das PHILIPS Portexpander-IC PCF8591P mit seinen Verbindungen zu einem 10-poligen Wannenstecker als Anschluß für die AD- und DA-Ports aufgebaut.

Man braucht folgende Bauteile (Bestell-Nummern CONRAD) zusätzlich für die 2. Phase:

Anzahl Bestell-Nr. Bauteil-Bezeichnung:
1 152668 IC PCF8591P
1 189626 IC Sockel DIL 16-polig
1 741648 Wannenstecker gerade, 2 x 5-polig
1 460559 Elektrolyt-Kondensator 10 uF/63 V

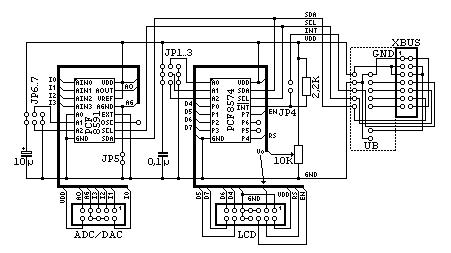

Hier erst einmal der Schaltplan:

RP6v2 Portexpander SP 2.JPG

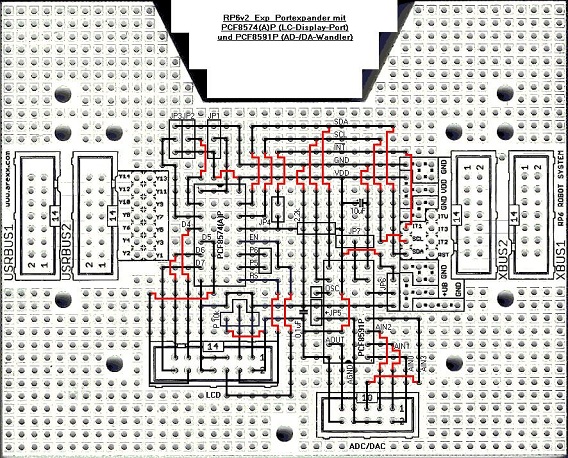

Und dann der Bestückungsplan:

RP6v2 Portexpander 2.JPG

Ich habe die Drahtbrücken aus isoliertem Schaltdraht (es sind zusätzlich noch 7) rot eingezeichnet. Sie werden auf der Oberseite der Experimentierplatine bestückt!

Viel Erfolg beim Aufbau!

Testen, ob die Schaltung grundsätzlich funktioniert, kann man mit der Demo "RP6Base_I2CMaster_02.c" aus den RP6v2 Examples. Die Demo zeigt das schon aus Phase 1 bekannte Lauflicht (mit dem PCF8574) und die 4 AD-Wandler Werte des PCF8591. Die angezeigten Werte werden zufällig sein, wenn an die analogen Eingangs-Ports des PCF8591 (AIN0..3) keine Schaltung angeschlossen ist. Man kann z.B. 4 LDRs zur Helligkeitsmessung verwenden. Als Vorbild kann man die Schaltung der Helligkeits-Sensoren des RP6v2 nehmen (Schaltplan RP6v2_SENSORS.pdf): Dort sind LDRs des Typs A9060 (145475) mit Widerständen 68 kOhm (403474) in Reihe geschaltet. Der ADC-Eingang liegt dann zwischen LDR und Widerstand. Die 4 Eingangs-Ports des PCF8591 findet man an den Pins 2, 1, 3, 5 (AIN0..3) des ADC/DAC-Wannensteckers. Auf die Jumper JP6, JP7 werden 2 Codierbrücken so aufgesteckt, dass die Adresseingänge des PCF8591 (A1..A2) mit GND verbunden sind (Position JP6 zum unteren, JP7 zum rechten Platinenrand). Auf JP5 wird ebenfalls eine Codierbrücke aufgesteckt (AGND = GND).

Der PCF8591 verfügt zusätzlich zu den 4 ADCs noch über einen DAC (Digital-Analog-Wandler). Dieser Ausgang (AOUT) ist verfügbar an Pin 9 des ADC/DAC-Wannensteckers. Nutzt man diese Funktion, kann man eine Spannung von 0..5 V an AOUT messen (JP5 aufgesteckt!).


Phase 3

In der Phase 3 wird ein I2C-EEPROM des Typs 24LCXXX-P z.B. zur Speicherung von Messdaten oder Einstellungen aufgebaut. Je nach Datenmenge, die man dauerhaft speichern will, kann man I2C-EEPROMs von 4 kByte (24LC32-P) bis 128 kByte (24LC1024-P) Kapazität einsetzen.

Man braucht folgende Bauteile (Bestell-Nummern CONRAD) zusätzlich für die 3. Phase:

Anzahl Bestell-Nr. Bauteil-Bezeichnung: EEPROM Blocksize
1 Reichelt IC ST24LC32A-I/P ODER 4 k x 8 32
1 160416 IC ST24LC64-I/P ODER 8 k x 8 32
1 150206 IC ST24LC128-I/P ODER 16 k x 8 64
1 150234 IC ST24LC256-I/P ODER 32 k x 8 64
1 160413 IC ST24LC512-I/P ODER 64 k x 8 128
1 DigiKey IC AT24LC1024-10PI 128 k x 8 256
1 189600 IC Sockel DIL 8-polig
1 500812 Keramik Kondensator 100 nF

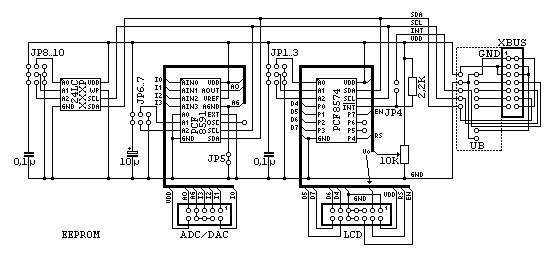

Hier erst einmal der Schaltplan:

RP6v2 Portexpander SP 3.JPG

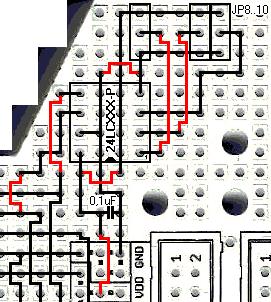

Und dann der Bestückungsplan (Ausschnitt):

RP6v2 Portexpander 3k.JPG

Ich habe die Drahtbrücken aus isoliertem Schaltdraht (es sind zusätzlich noch 7) rot eingezeichnet. Sie werden auf der Oberseite der Experimentierplatine bestückt!

Viel Erfolg beim Aufbau!

Testen, ob die Schaltung grundsätzlich funktioniert, kann man mit den EEPROM-Demos, die im Software-Abschnitt beschrieben werden. Auf die Jumper JP8..10 werden 3 Codierbrücken so aufgesteckt, dass die Adresseingänge des 24LCXXX-P (A0..A2) mit GND verbunden sind (Position zum unteren Platinenrand).


Letzte Arbeiten

Was bleibt noch?

  • Wenn die Platine komplett aufgebaut ist, kann man sie mit Plastik 70 Spray auf der Lötseite gegen Korrosion schützen
  • Kontrast des LCD mit dem Poti 10 kOhm einstellen
  • Eine Befestigung für das LCD auf der Exp konstruieren
  • Sich Anwendungen überlegen
  • Anwendungen programmieren
  • ...


Allgemeine Daten und Tabellen

Stecker

Stecker Pins Bedeutung
P5 P6 2 PCF8574: I/O-Ports P5, P6
LCD 14 PCF8574: LCD-Wannenstecker (I/O-Ports P0..P3, P4, P7)
OSC 1 PCF8591: Oszillator Ein-/Ausgang
ADC/DAC 10 PCF8591: ADC/DAC-Wannenstecker (AIN0..AIN3, AOUT)

LCD

Pin Port LCD Bedeutung
1 GND VSS
2 VDD +5 V
3 Vo Kontrast
4 P4 RS Daten/Befehle
5 RW = GND
6 P7 EN Enable
7 D0 = GND
8 D1 = GND
9 D2 = GND
10 D3 = GND
11 P0 D4 Daten LSB
12 P1 D5 Daten
13 P2 D6 Daten
14 P3 D7 Daten MSB

ADC/DAC

Pin Port Bedeutung
1 AIN1 Analog Eingang 1
2 AIN0 Analog Eingang 0
3 AIN2 Analog Eingang 2
4 AGND Analog GND
5 AIN3 Analog Eingang 3
6 AGND Analog GND
7 AGND Analog GND
8 AGND Analog GND
9 AOUT Analog Ausgang
10 VDD +5 V

Jumper

Zeichenerklärung:

  • Zweipolige Jumper:
    • Stellung ON = Jumper aufgesteckt (Kontakt geschlossen)
    • Stellung OFF = Jumper abgezogen (Kontakt offen)
  • Dreipolige Jumper:
    • Stellung O = Jumper oben * aufgesteckt
    • Stellung U = Jumper unten * aufgesteckt
    • Stellung L = Jumper links * aufgesteckt
    • Stellung R = Jumper rechts * aufgesteckt

Zu *) Platine so gesehen, wie im Bestückungsplan!

Jumper Stellung Bedeutung
JP1 O (S) PCF8574: A0 = 0
JP1 U PCF8574: A0 = 1
JP2 O (S) PCF8574: A1 = 0
JP2 U PCF8574: A1 = 1
JP3 O (S) PCF8574: A2 = 0
JP3 U PCF8574: A2 = 1
JP4 ON PCF8574: INT verwenden
JP4 OFF (S) PCF8574: INT nicht verwenden
JP5 ON (S) PCF8591: AGND = GND
JP5 OFF PCF8591: AGND variabel
JP6 O PCF8591: A1 = 1
JP6 U (S) PCF8591: A1 = 0
JP7 L PCF8591: A2 = 1
JP7 R (S) PCF8591: A2 = 0
JP8 O 24LCXXX-P: A0 = 1
JP8 U (S) 24LCXXX-P: A0 = 0
JP9 O 24LCXXX-P: A1 = 1
JP9 U (S) 24LCXXX-P: A1 = 0
JP10 O 24LCXXX-P: A2 = 1
JP10 U (S) 24LCXXX-P: A2 = 0

Zu (S) Standard-Stellung der Jumper!

I2C-Adressen

A2 A1 A0 PCF8574P PCF8574AP PCF8591P 24LCXXX-P
0 0 0 0x40 0x70 0x90 0xA0
0 0 1 0x42 0x72 nicht nutzbar * 0xA2
0 1 0 0x44 0x74 0x94 0xA4
0 1 1 0x46 0x76 nicht nutzbar * 0xA6
1 0 0 0x48 0x78 0x98 0xA8 **
1 0 1 0x4A 0x7A nicht nutzbar * 0xAA **
1 1 0 0x4C 0x7C 0x9C 0xAC **
1 1 1 0x4E 0x7E nicht nutzbar * 0xAE **

Zu *) Da A0 = 0 festgelegt!

Zu **) Beim AT24LC1024 nicht nutzbar, da A2 = 0 festgelegt!


RP6v2 I2C-Portexpander: Software

Phase 1

I2C-LCD-Libraries

RP6v2 Base und CONTROL M32

Die RP6v2 I2C-LCD Library für die RP6v2 Base und CONTROL M32 gehört in den Ordner \RP6Lib\RP6common.

Die Library stellt für das I2C-LCD dieselben Befehle zur Verfügung, wie sie von der RP6Control Library für das an die RP6 CONTROL M32 angeschlossene LCD bereit gestellt werden (siehe Anleitung zur RP6 CONTROL M32, S. 14, Kapitel 3.1.6. LC-Display!). Die Library kann sowohl mit der RP6v2 Base, als auch mit der RP6 CONTROL M32 (jeweils als I2C Master) eingesetzt werden.

Lediglich die Funktionsnamen ändern sich: Anstelle z.B. der Funktion initLCD() der RP6Control Library heißt dieselbe Funktion der I2C-LCD Library initI2CLCD(). In allen Funktionsnamen wird also der Teil "...LCD..." durch "...I2CLCD..." ersetzt.

Die I2C-LCD Library bietet vier zusätzliche Funktionen:

  • void writeLongI2CLCD(int32_t number, uint8_t base)
  • void writeLongLengthI2CLCD(int32_t number, uint8_t base, uint8_t length)
  • void writeDoubleI2CLCD(double number, uint8_t width, uint8_t prec)
  • void writeDoubleExpI2CLCD(double number, uint8_t prec, uint8_t flags)

Diese Funktionen ermöglichen die Ausgabe von Long (int32_t) und Double (32-Bit Gleitkomma) Variablen auf dem I2C-LCD.

Beispiele:

writeLongI2CLCD(43724, HEX);          ==> Ausgabe: aacc
writeLongI2CLCD(43724, BIN);          ==> Ausgabe: 1010101011001100
writeLongLengthI2CLCD(43724, DEC, 8); ==> Ausgabe: 00043724
writeLongLengthI2CLCD(43724, HEX, 6); ==> Ausgabe: 00aacc
writeDoubleI2CLCD(123.45678, 10, 4);  ==> Ausgabe:   123.4568
writeDoubleExpI2CLCD(123.45678, 3, DTOSTR_PLUS_SIGN); ==> Ausgabe: +1.235e+02
Header

Datei RP6I2ClcdTWI.h:

/* ****************************************************************************
 *                           _______________________
 *                           \| RP6  ROBOT SYSTEM |/
 *                            \_-_-_-_-_-_-_-_-_-_/         		 >>> COMMON
 * ----------------------------------------------------------------------------
 * ------------------------ [c]2012 - Dirk ------------------------------------
 * ****************************************************************************
 * File: RP6I2ClcdTWI.h
 * Version: 1.0
 * Target: RP6 Base & Processor Expansion - ATMEGA32 @8.00 or 16.00MHz
 * Author(s): Dirk
 * ****************************************************************************
 * Description:
 * This is the RP6I2ClcdTWI header file.
 * You have to include this file, if you want to use the library
 * RP6I2ClcdTWI.c in your own projects.
 *
 * ****************************************************************************
 * THE CHANGELOG CAN BE FOUND AT THE END OF THIS FILE!
 * ****************************************************************************
 */

#ifndef RP6I2CLCDTWI_H
#define RP6I2CLCDTWI_H

/*****************************************************************************/
// Includes:

#include "RP6I2ClcdTWIConfig.h"		// Configure the target system

// Select includes depending on RP6I2ClcdTWIConfig.h:
#ifdef RP6BASE
	#include "RP6RobotBaseLib.h"	// The RP6 Robot Base Library.
#else
#ifdef RP6CONTROL
	#include "RP6ControlLib.h"	// The RP6 Control M32 Library.
#else
	#error DEFINE "RP6BASE" OR "RP6CONTROL" AS TARGET IN RP6I2ClcdTWIConfig.h
#endif
#endif
#include "RP6I2CmasterTWI.h"		// Include the I2C-Bus Master Library

/*****************************************************************************/
// Defines:

#ifndef HEX
	#define HEX 16
#endif
#ifndef DEC
	#define DEC 10
#endif
#ifndef OCT
	#define OCT 8
#endif
#ifndef BIN
	#define BIN 2
#endif

// Max. precision of the dtostre/dtostrf conversion:
#ifndef PRECISION
	#define PRECISION		6
#endif
// dtostre flags:
#ifndef DTOSTR_ALWAYS_SIGN
	#define DTOSTR_ALWAYS_SIGN	0x01	// ' ' for positive numbers
#endif
#ifndef DTOSTR_PLUS_SIGN
	#define DTOSTR_PLUS_SIGN	0x02	// '+' instead of ' '
#endif
#ifndef DTOSTR_UPPERCASE
	#define DTOSTR_UPPERCASE	0x04	// 'E' instead of 'e' for the exponent
#endif

/*****************************************************************************/
// I2C-LCD functions:

// A shadow register that simplifies the I2C to LCD communication:
typedef union {
	uint8_t byte;
	struct {
		unsigned LCDD : 4;
		unsigned RS   : 1;
		unsigned P5   : 1;
		unsigned P6   : 1;
		unsigned EN   : 1;
	};
} i2clcdPort_t;
extern i2clcdPort_t i2clcdPort;

void setI2CLCDD(uint8_t lcdd);
void write4BitI2CLCDData(uint8_t data);
void writeI2CLCDCommand(uint8_t cmd);
void initI2CLCD(void);

void clearI2CLCD(void);
void clearPosI2CLCD(uint8_t line, uint8_t pos, uint8_t length);

void writeCharI2CLCD(uint8_t ch);
void writeNStringI2CLCD_P(const char *pstring);
#define writeStringI2CLCD_P(__pstr) writeNStringI2CLCD_P((PSTR(__pstr)))
void writeStringI2CLCD(char *string);
void writeStringLengthI2CLCD(char *string, uint8_t length, uint8_t offset);

void _showScreenI2CLCD_P(const char *line1, const char *line2);
#define showScreenI2CLCD(__line1,__line2); ({_showScreenI2CLCD_P((PSTR(__line1)),(PSTR(__line2)));})

void writeIntegerI2CLCD(int16_t number, uint8_t base);
void writeIntegerLengthI2CLCD(int16_t number, uint8_t base, uint8_t length);
void writeLongI2CLCD(int32_t number, uint8_t base);
void writeLongLengthI2CLCD(int32_t number, uint8_t base, uint8_t length);
void writeDoubleI2CLCD(double number, uint8_t width, uint8_t prec);
void writeDoubleExpI2CLCD(double number, uint8_t prec, uint8_t flags);

void setCursorPosI2CLCD(uint8_t line, uint8_t pos);

#endif

/******************************************************************************
 * Additional info
 * ****************************************************************************
 * Changelog:
 *
 *  ---> changes are documented in the file "RP6I2ClcdTWI.c"
 *
 * ****************************************************************************
 */

/*****************************************************************************/
// EOF
Library

Datei RP6I2ClcdTWI.c:

/* ****************************************************************************
 *                           _______________________
 *                           \| RP6  ROBOT SYSTEM |/
 *                            \_-_-_-_-_-_-_-_-_-_/         		 >>> COMMON
 * ----------------------------------------------------------------------------
 * ------------------------ [c]2012 - Dirk ------------------------------------
 * ****************************************************************************
 * File: RP6I2ClcdTWI.c
 * Version: 1.0
 * Target: RP6 Base & Processor Expansion - ATMEGA32
 *         with LC-Display 16x2 chars (CONRAD 190911)
 *         [or Backlight Display 16x2 chars (CONRAD 191621)]
 *         connected to the RP6v2 I2C-Bus with a PHILIPS PCF8574
 *         I2C port expander.
 * Author(s): Dirk
 * ****************************************************************************
 * Description:
 * This is my RP6v2 I2C-LCD Library. It contains functions for driving an
 * LCD with an I2C port expander PCF8574 on the I2C-Bus. The PCF8574 may be
 * built up on an RP6v2 experiment board (CONRAD 191537) as shown here:
 *     ---> http://www.rn-wissen.de/index.php/RP6v2_I2C-Portexpander <---
 *
 * Connection of the LCD to the PCF8574:
 *  PCF8574   LCD
 *   P0..P3   D4..D7
 *   P4       RS
 *   P5, P6   n.c.
 *   P7       EN
 * LCD D0..D3 and LCD RW are connected to GND.
 * This pin allocation is compatible with "RN-Wissen", BASCOM-AVR: AN #118
 * (lcd_i2c.lib) and "Asuro Wiki: LCD Erweiterung".
 *
 * ****************************************************************************
 * THE CHANGELOG CAN BE FOUND AT THE END OF THIS FILE!
 * ****************************************************************************
 */

/*****************************************************************************/
// Includes:

#include "RP6I2ClcdTWI.h"

/*****************************************************************************/
// I2C-LCD functions:

// All I2C-LCD routines are prepared to control a 2x16 character LCD.
// If you want to connect a bigger LCD you need to change some things in
// these routines! (especially in the initI2CLCD, setCursorI2CLCD and
// showScreenI2CLCD routines)

// A shadow register for the I2C to LCD communication:
i2clcdPort_t i2clcdPort;

char lcd_tmp_buffer[17];

/**
 * Sets new 4-bit data for the LCD and also pulses the enable line of the
 * LCD to 'inform' the LCD about the new data.
 */
void setI2CLCDD(uint8_t lcdd)
{
	i2clcdPort.LCDD = lcdd;
	i2clcdPort.EN = 1;
	I2CTWI_transmitByte(PCF8574_LCD_ADR, i2clcdPort.byte);
	delayCycles(50);
	i2clcdPort.EN = 0;
	I2CTWI_transmitByte(PCF8574_LCD_ADR, i2clcdPort.byte);
}

/**
 * Write a 8bit-byte in two nibbles of 4bit to the LCD.
 */
void write4BitI2CLCDData(uint8_t data)
{
	setI2CLCDD(data >> 4);
	setI2CLCDD(data);
	delayCycles(150);
}

/**
 * Write a command to the LCD.
 */
void writeI2CLCDCommand(uint8_t cmd)
{
	i2clcdPort.RS = 0;
	write4BitI2CLCDData(cmd);
	delayCycles(150);
}

/**
 * Initialize the LCD. Always call this before using the I2C-LCD!
 *
 */
void initI2CLCD(void)
{
	//delayCycles(34000); No need for Power ON delay as usually the
	// Bootloader should have been executed before...
	setI2CLCDD(0b0011);
	delayCycles(18000);
	setI2CLCDD(0b0011);
	delayCycles(5500);
	setI2CLCDD(0b0011);
	delayCycles(5500);
	setI2CLCDD(0b0010);
	delayCycles(5500);
	writeI2CLCDCommand(0b00101000);
	delayCycles(5500);
	writeI2CLCDCommand(0b00001000);
	delayCycles(5500);
	writeI2CLCDCommand(0b00000001);
	delayCycles(5500);
	writeI2CLCDCommand(0b00000010);
	delayCycles(5500);
	writeI2CLCDCommand(0b00001100);
	delayCycles(5500);
}

/**
 * Clears the whole LCD!
 */
void clearI2CLCD(void)
{
	writeI2CLCDCommand(0b00000001);
	delayCycles(5500);
}

/**
 * Clears some characters after the given position.
 */
void clearPosI2CLCD(uint8_t line, uint8_t pos, uint8_t length)
{
	setCursorPosI2CLCD(line, pos);
	while(length--)
		writeCharI2CLCD(' ');
}

/**
 * Write a single character to the LCD.
 *
 * Example:
 *
 *			writeCharI2CLCD('R');
 *			writeCharI2CLCD('P');
 *			writeCharI2CLCD('6');
 *			writeCharI2CLCD(' ');
 *			writeCharI2CLCD('0');
 *			writeCharI2CLCD(48); // 48 is ASCII code for '0'
 *			writeCharI2CLCD(49); // '1'
 *			writeCharI2CLCD(50); // '2'
 *			writeCharI2CLCD(51); // '3'
 *			//...
 *
 *			would output:
 *			RP6 00123
 *			at the current cursor position!
 *			use setCursorPosI2CLCD function to move the cursor to a
 *			different location!
 */
void writeCharI2CLCD(uint8_t ch)
{
	i2clcdPort.RS = 1;
	write4BitI2CLCDData(ch);
	delayCycles(50);
}

/**
 * Writes a null terminated string from flash program memory to the LCD.
 * You can use the macro writeStringI2CLCD_P(STRING); instead, this macro
 * ensures that the String is stored in program memory only!
 *
 * Example:
 *
 *			writeNStringI2CLCD_P(PSTR("RP6 Control"));
 *
 *			// There is also a Macro that makes life easier and
 *			// you can simply write:
 *			writeStringI2CLCD_P("RP6 Control");
 *
 */
void writeNStringI2CLCD_P(const char *pstring)
{
    uint8_t c;
    for (; (c = pgm_read_byte_near(pstring++)); writeCharI2CLCD(c));
}

/**
 * Writes a String from SRAM to the LCD.
 */
void writeStringI2CLCD(char *string)
{
	while(*string)
		writeCharI2CLCD(*string++);
}

/**
 * Writes a string with specified length and offset from SRAM to the LCD.
 * If it is a null terminated string, output will be stopped at the
 * end. It does not need to be null terminated, but it is recommended
 * to use only null terminated strings/buffers, otherwise the function could
 * output any SRAM memory data stored after the string until it reaches a 0
 * or the specified length!
 *
 * Example:
 *
 *			writeStringLengthI2CLCD("RP6 Robot Sytem",16,0);
 *			// would output: "RP6 Robot Sytem\n"
 *			writeStringLengthI2CLCD("RP6 Robot Sytem",11,4);
 *			// would output: "Robot System"
 * 			writeStringLengthI2CLCD("RP6 Robot Sytem",40,4);
 *			// would output: "Robot System"
 *			// No matter if the specified length is 40 characters!
 *
 */
void writeStringLengthI2CLCD(char *string, uint8_t length, uint8_t offset)
{
	for(string = &string[offset]; *string && length; length--)
		writeCharI2CLCD(*string++);
}

/**
 * This function is useful for displaying text screens on the LCD.
 * It clears the whole LCD and writes the two Strings to line 1 and
 * line 2.
 */
void _showScreenI2CLCD_P(const char *line1, const char *line2)
{
	clearI2CLCD();
	writeNStringI2CLCD_P(line1);
	setCursorPosI2CLCD(1, 0);
	writeNStringI2CLCD_P(line2);
}

/**
 * Write a number (with specified base) to the LCD.
 *
 * Example:
 *
 *			// Write a hexadecimal number to the LCD:
 *			writeIntegerI2CLCD(0xAACC,16);
 *			// Instead of 16 you can also write "HEX" as this is defined in the
 *			// RP6I2ClcdTWI.h :
 *			writeIntegerI2CLCD(0xAACC, HEX);
 *			// Other Formats:
 *			writeIntegerI2CLCD(1024,DEC);  	// Decimal
 *			writeIntegerI2CLCD(511,OCT);	// Octal
 *			writeIntegerI2CLCD(0b11010111,BIN); // Binary
 */
void writeIntegerI2CLCD(int16_t number, uint8_t base)
{
	itoa(number, &lcd_tmp_buffer[0], base);
	writeStringI2CLCD(&lcd_tmp_buffer[0]);
}

/**
 * Same as writeIntegerI2CLCD, but with defined length.
 * This means this routine will add leading zeros to the number if length is
 * larger than the actual value or cut the upper digits if length is smaller
 * than the actual value.
 *
 * Example:
 *
 *			// Write a hexadecimal number to the LCD:
 *			writeIntegerLengthI2CLCD(0xAACC, 16, 8);
 *			// Instead of 16 you can also write "HEX" as this is defined in the
 *			// RP6I2ClcdTWI.h :
 *			writeIntegerLengthI2CLCD(0xAACC, HEX, 8);
 *			// Other Formats:
 *			writeIntegerLengthI2CLCD(1024,DEC,6);  	// Decimal
 *			writeIntegerLengthI2CLCD(511,OCT,4);	// Octal
 *			writeIntegerLengthI2CLCD(0b11010111,BIN,8); // Binary
 */
void writeIntegerLengthI2CLCD(int16_t number, uint8_t base, uint8_t length)
{
	char buffer[17];
	itoa(number, &buffer[0], base);
	int8_t cnt = length - strlen(buffer);
	if(cnt > 0) {
		for(; cnt > 0; cnt--, writeCharI2CLCD('0'));
		writeStringI2CLCD(&buffer[0]);
	}
	else
		writeStringLengthI2CLCD(&buffer[0], length, -cnt);
}

/**
 * Write a long number (with specified base) to the LCD.
 *
 * Example:
 *
 *			// Write a hexadecimal number to the LCD:
 *			writeLongI2CLCD(0xAACC,16);
 *			// Instead of 16 you can also write "HEX" as this is defined in the
 *			// RP6I2ClcdTWI.h :
 *			writeLongI2CLCD(0xAACC, HEX);
 *			// Other Formats:
 *			writeLongI2CLCD(1024,DEC);  	// Decimal
 *			writeLongI2CLCD(511,OCT);	// Octal
 *			writeLongI2CLCD(0b11010111,BIN); // Binary
 */
void writeLongI2CLCD(int32_t number, uint8_t base)
{char buffer[33];
	ltoa(number, &buffer[0], base);
	writeStringI2CLCD(&buffer[0]);
}

/**
 * Same as writeLongI2CLCD, but with defined length.
 * This means this routine will add leading zeros to the number if length is
 * larger than the actual value or cut the upper digits if length is smaller
 * than the actual value.
 *
 * Example:
 *
 *			// Write a hexadecimal number to the LCD:
 *			writeLongLengthI2CLCD(0xAACC, 16, 8);
 *			// Instead of 16 you can also write "HEX" as this is defined in the
 *			// RP6I2ClcdTWI.h :
 *			writeLongLengthI2CLCD(0xAACC, HEX, 8);
 *			// Other Formats:
 *			writeLongLengthI2CLCD(1024,DEC,6);	// Decimal
 *			writeLongLengthI2CLCD(511,OCT,4);	// Octal
 *			writeLongLengthI2CLCD(0b11010111,BIN,8); // Binary
 */
void writeLongLengthI2CLCD(int32_t number, uint8_t base, uint8_t length)
{char buffer[33];
	ltoa(number, &buffer[0], base);
	int8_t cnt = length - strlen(buffer);
	if(cnt > 0) {
		for(; cnt > 0; cnt--, writeCharI2CLCD('0'));
		writeStringI2CLCD(&buffer[0]);
	}
	else
		writeStringLengthI2CLCD(&buffer[0], length, -cnt);
}

/**
 * Write a floating point number to the LCD.
 *
 * Example:
 *
 *			// Write a floating point number to the LCD (no exponent):
 *			writeDoubleI2CLCD(1234567.890, 11, 3);
 *
 * The value of prec (precision) defines the number of decimal places.
 * For 32 bit floating point variables (float, double ...) 6 is
 * the max. value for prec (7 relevant digits).
 * The value of width defines the overall number of characters in the
 * floating point number including the decimal point. The number of
 * pre-decimal positions is: (width - prec - 1).
 */
void writeDoubleI2CLCD(double number, uint8_t width, uint8_t prec)
{char buffer[width + 1];
	dtostrf(number, width, prec, &buffer[0]);
	writeStringI2CLCD(&buffer[0]);
}

/**
 * Write a floating point number to the LCD.
 *
 * Example:
 *
 *			// Write a floating point number to the LCD (with exponent):
 *			writeDoubleExpI2CLCD(-123.456, 3, 0);
 *			// ... if you want a '+' sign for positive numbers:
 *			writeDoubleExpI2CLCD(+123.456, 3, DTOSTR_PLUS_SIGN);
 *
 * The value of prec (precision) defines the number of decimal places.
 * For 32 bit floating point variables (float, double ...) 6 is
 * the max. value for prec (7 relevant digits).
 */
void writeDoubleExpI2CLCD(double number, uint8_t prec, uint8_t flags)
{char buffer[prec + 8];
	dtostre(number, &buffer[0], prec, flags);
	writeStringI2CLCD(&buffer[0]);
}

/**
 * Sets the cursor position on LCD.
 */
void setCursorPosI2CLCD(uint8_t line, uint8_t pos)
{
	pos |= 128;
	if(line == 1) pos += 0x40;
	writeI2CLCDCommand(pos);
}

/******************************************************************************
 * Additional info
 * ****************************************************************************
 * Changelog:
 * - v. 1.0 (initial release) 28.05.2012 by Dirk
 *
 * ****************************************************************************
 */

/*****************************************************************************/
// EOF

RP6 CCPRO M128

Die RP6v2 I2C-LCD Library für die RP6 CCPRO M128 gehört in den Ordner \RP6CCLib.

Die Library stellt für das I2C-LCD dieselben Befehle zur Verfügung, wie sie von der RP6CC Library für das an die RP6 CCPRO M128 angeschlossene LCD bereit gestellt werden (siehe Anleitung zur RP6 CCPRO M128, S. 25, Kapitel 3.1.8. LC-Display!).

Lediglich die Funktionsnamen ändern sich: Anstelle z.B. der Funktion RP6_initLCD() der RP6CC Library heißt dieselbe Funktion der I2C-LCD Library RP6_initI2CLCD(). In allen Funktionsnamen wird also der Teil "...LCD..." durch "...I2CLCD..." ersetzt.

Die I2C-LCD Library bietet zwei zusätzliche Makros:

  • printWordI2CLCD(__WRD__, __BASE__, __MINW__)
  • printFloatI2CLCD(__FLT__, __DECP__)

Diese Makros ermöglichen die Ausgabe von Word und Float Variablen auf dem I2C-LCD.

Beispiele:

WordVar = 12345; printWordI2CLCD(WordVar, DEC, 0);   ==> Ausgabe: 12345
WordVar = 12345; printWordI2CLCD(WordVar, DEC, 8);   ==> Ausgabe: 00012345
WordVar = 12345; printWordI2CLCD(WordVar, HEX, 0);   ==> Ausgabe: 3039
WordVar = 12345; printWordI2CLCD(WordVar, BIN, 0);   ==> Ausgabe: 11000000111001
WordVar = 12345; printWordI2CLCD(WordVar, BIN, 16);  ==> Ausgabe: 0011000000111001
FloatVar = 123.45678; printFloatI2CLCD(FloatVar, 2); ==> Ausgabe: 123.46
FloatVar = 123.45678; printFloatI2CLCD(FloatVar, 4); ==> Ausgabe: 123.4568

Datei RP6I2ClcdCClib.cc:

/* ****************************************************************************
 *                           _______________________
 *                           \| RP6  ROBOT SYSTEM |/
 *                            \_-_-_-_-_-_-_-_-_-_/              >>> CCPRO M128
 * ----------------------------------------------------------------------------
 * ----------------------------- [c]2012 - Dirk -------------------------------
 * ****************************************************************************
 * File: RP6I2ClcdCClib.cc
 * Version: 1.0 - CompactC
 * Target: RP6 CCPRO M128 - C-Control PRO M128 @14.7456MHz
 *         mit LC-Display 16x2 Zeichen (CONRAD 190911)
 *         [oder Backlight Display 16x2 Zeichen (CONRAD 191621)]
 *         verbunden mit dem RP6v2 I2C-Bus durch einen PHILIPS PCF8574
 *         I2C Port Expander.
 * Author(s): Dirk
 * ****************************************************************************
 * Beschreibung:
 * Dies ist meine RP6 CCPRO M128 I2C-LCD Bibliothek. Sie enthält Funktionen,
 * um ein LCD mit einem I2C Port Expander PCF8574 über den I2C-Bus anzu-
 * steuern. Der PCF8574 kann auf einer RP6v2 Experimentierplatine (CONRAD
 * 191537) aufgebaut werden, wie hier gezeigt wird:
 *     ---> http://www.rn-wissen.de/index.php/RP6v2_I2C-Portexpander <---
 *
 * Verbindung des LCDs mit dem PCF8574:
 *  PCF8574   LCD
 *   P0..P3   D4..D7
 *   P4       RS
 *   P5, P6   n.c.
 *   P7       EN
 * LCD D0..D3 und LCD RW sind mit GND verbunden.
 * Diese Belegung ist kompatibel mit "RN-Wissen", BASCOM-AVR: AN #118
 * (lcd_i2c.lib) und "Asuro Wiki: LCD Erweiterung".
 *
 * ****************************************************************************
 * CHANGELOG FINDEN SIE AM ENDE DIESER DATEI!
 * ****************************************************************************
 */

 // Alles nur EINMAL einbinden!
#ifndef __RP6I2CLCDCCLIB__
#define __RP6I2CLCDCCLIB__


/******************************************************************************/
// I2C-LCD:

// Ein "Schattenregister" für die I2C - LCD Kommunikation:
byte i2clcdPort;

#define LCD_RS 16;
#define LCD_EN 128;

#define HEX 16
#define DEC 10
#define OCT 8
#define BIN 2

// ----------------------------------------------------------------------------
// Makros zur Ausgabe auf dem I2C-LCD:

char __tmp_txt_i2clcd__[32];

/**
 * Sendet einen Text an das I2C-LCD.
 */
#define printI2CLCD(__STRING__) {__tmp_txt_i2clcd__ = __STRING__;\
 writeStringI2CLCD(__tmp_txt_i2clcd__);}

/**
 * Beschreibt eine bestimmte Zeile des I2C-LCDs.
 */
#define printlnI2CLCD(__STRING__, __LINE__, __POS__) {__tmp_txt_i2clcd__ = __STRING__;\
 writeLineI2CLCD(__tmp_txt_i2clcd__, __LINE__, __POS__);}

/**
 * Konvertiert eine Zahl (Int) in ASCII Zeichen und schreibt
 * diese auf das I2C-LCD.
 */
#define printIntegerI2CLCD(__INT__) {Str_WriteInt((__INT__),__tmp_txt_i2clcd__,0);\
 writeStringI2CLCD(__tmp_txt_i2clcd__);}

/**
 * Konvertiert eine Zahl (Word) in ASCII Zeichen und schreibt
 * diese auf das I2C-LCD.
 */
#define printWordI2CLCD(__WRD__, __BASE__, __MINW__) {Str_WriteWord((__WRD__),(__BASE__),__tmp_txt_i2clcd__,0,__MINW__);\
 writeStringI2CLCD(__tmp_txt_i2clcd__);}

/**
 * Konvertiert eine Zahl (Float) in ASCII Zeichen und schreibt
 * diese auf das I2C-LCD.
 */
#define printFloatI2CLCD(__FLT__, __DECP__) {Str_WriteFloat((__FLT__),(__DECP__),__tmp_txt_i2clcd__,0);\
 writeStringI2CLCD(__tmp_txt_i2clcd__);}

/**
 * Schreibt zwei komplette Zeilen Text auf das I2C-LCD.
 */
#define showScreenI2CLCD(__STRING1__, __STRING2__) {clearI2CLCD();\
 printI2CLCD(__STRING1__); setCursorPosI2CLCD(1, 0); printI2CLCD(__STRING2__); }


/**
 * Sendet ein einzelnes Daten Byte über den I2C Bus.
 */
void RP6_writeByte(byte adr, byte data)
{
    Thread_Lock(1);
    I2C_Start();
    I2C_Write(adr);
    I2C_Write(data);
    I2C_Stop();
    Thread_Lock(0);
}

/**
 * Sendet ein 4 Bit Nibble an das I2C-LCD.
 */
void setI2CLCDD(byte lcdd)
{
    Thread_Lock(1);
    i2clcdPort = i2clcdPort & 0xf0;
    i2clcdPort = i2clcdPort | lcdd | LCD_EN;
    RP6_writeByte(PCF8574_LCD_ADR, i2clcdPort);
    delayCycles(6);
    i2clcdPort = i2clcdPort & ~LCD_EN;
    RP6_writeByte(PCF8574_LCD_ADR, i2clcdPort);
    delayCycles(6);
    Thread_Lock(0);
}

/**
 * Sendet ein Kommando an das I2C-LCD.
 */
void writeI2CLCDCommand(byte cmd)
{
    Thread_Lock(1);
    i2clcdPort = i2clcdPort & ~LCD_RS;
    setI2CLCDD(cmd >> 4);
    setI2CLCDD(cmd);
    delayCycles(1);
    Thread_Lock(0);
}

/**
 * Sendet ein Zeichen an das I2C-LCD.
 */
void writeCharI2CLCD(char ch)
{
    Thread_Lock(1);
    i2clcdPort = i2clcdPort | LCD_RS;
    setI2CLCDD(ch >> 4);
    setI2CLCDD(ch);
    delayCycles(1);
    Thread_Lock(0);
}

/**
 * Initialisiert das I2C-LCD - muss immer aufgerufen werden bevor
 * man das I2C-LCD verwenden kann!
 */
void RP6_initI2CLCD(void)
{
    Thread_Lock(1);
    delayCycles(2500);
    setI2CLCDD(0x03);
    delayCycles(2500);
    setI2CLCDD(0x03);
    delayCycles(2500);
    setI2CLCDD(0x03);
    delayCycles(2500);
    setI2CLCDD(0x02);
    delayCycles(2500);
    writeI2CLCDCommand(0x0028);
    delayCycles(2500);
    writeI2CLCDCommand(0x0008);
    delayCycles(2500);
    writeI2CLCDCommand(0x0001);
    delayCycles(2500);
    writeI2CLCDCommand(0x0002);
    delayCycles(2500);
    writeI2CLCDCommand(0x000C);
    delayCycles(2500);
    Thread_Lock(0);
}

/**
 * Sendet einen Text-String an das I2C-LCD.
 */
void writeStringI2CLCD(char text[])
{
    Thread_Lock(1);
    word i, size;
    size = Str_Len(text);
    for(i = 0; i < size; i++)
        writeCharI2CLCD(text[i]);
    Thread_Lock(0);
}

/**
 * Beschreibt eine bestimmte Zeile des I2C-LCDs mit einem Text.
 */
void writeLineI2CLCD(char text[], byte text_line, byte pos)
{
    Thread_Lock(1);
    setCursorPosI2CLCD(text_line, pos);
    word i, size;
    size = Str_Len(text);
    for(i = 0; i < size; i++)
        writeCharI2CLCD(text[i]);
    Thread_Lock(0);
}

/**
 * Setzt die Cursor Position auf dem I2C-LCD.
 */
void setCursorPosI2CLCD(byte text_line, byte pos)
{
    pos = pos | 128;
    if(text_line == 1) pos = pos + 0x40;
    writeI2CLCDCommand(pos);
}

/**
 * Löscht den gesamten Inhalt des I2C-LCDs.
 */
void clearI2CLCD(void)
{
    Thread_Lock(1);
    writeI2CLCDCommand(0x01);
    delayCycles(25);
    Thread_Lock(0);
}

/**
 * Löscht eine bestimmte Anzahl von Zeichen beginnend an einer bestimmten Stelle.
 */
void clearPosI2CLCD(byte text_line, byte pos, byte length)
{
    Thread_Lock(1);
    setCursorPosI2CLCD(text_line, pos);
    while(length--)
        writeCharI2CLCD(' ');
    Thread_Lock(0);
}

#endif

/******************************************************************************
 * Info
 * ****************************************************************************
 * Changelog:
 * - v. 1.0 (initial release) 04.06.2012 by Dirk
 *
 * ****************************************************************************
 */

/*****************************************************************************/
// EOF

RP6 M256 WiFi

Die RP6v2 I2C-LCD Library für die RP6v2 M256 WIFI gehört in den Ordner \RP6Lib\RP6control_M256WIFI.

Die Library stellt für das I2C-LCD die selben Befehle zur Verfügung, wie sie auch von der I2C-LCD Library für die RP6v2 Base und CONTROL M32 (siehe RP6v2 Base und CONTROL M32!) bereitgestellt werden.

Header

Datei RP6M256I2ClcdTWI.h:

/* ****************************************************************************
 *                           _______________________
 *                           \| RP6  ROBOT SYSTEM |/
 *                            \_-_-_-_-_-_-_-_-_-_/           >>> RP6 M256 WIFI
 * ----------------------------------------------------------------------------
 * ----------------------------- [c]2012 - Dirk -------------------------------
 * ****************************************************************************
 * File: RP6M256I2ClcdTWI.h
 * Version: 1.0
 * Target: RP6 CONTROL M256 WIFI - ATMEGA2560 @16.00MHz
 * Author(s): Dirk
 * ****************************************************************************
 * Description:
 * This is the RP6M256I2ClcdTWI header file.
 * You have to include this file, if you want to use the library
 * RP6M256I2ClcdTWI.c in your own projects.
 *
 * ****************************************************************************
 * THE CHANGELOG CAN BE FOUND AT THE END OF THIS FILE!
 * ****************************************************************************
 */

#ifndef RP6M256I2CLCDTWI_H
#define RP6M256I2CLCDTWI_H

/*****************************************************************************/
// Includes:

#include "RP6M256Lib.h"				// The RP6 M256 Library.
#include "RP6I2CmasterTWI.h"		// Include the I2C-Bus Master Library

/*****************************************************************************/
// Defines:

// Define the PCF8574 I2C address here:
#define PCF8574_LCD_ADR  0x70

#ifndef HEX
	#define HEX 16
#endif
#ifndef DEC
	#define DEC 10
#endif
#ifndef OCT
	#define OCT 8
#endif
#ifndef BIN
	#define BIN 2
#endif

// Max. precision of the dtostre/dtostrf conversion:
#ifndef PRECISION
	#define PRECISION			6
#endif
// dtostre flags:
#ifndef DTOSTR_ALWAYS_SIGN
	#define DTOSTR_ALWAYS_SIGN	0x01	// ' ' for positive numbers
#endif
#ifndef DTOSTR_PLUS_SIGN
	#define DTOSTR_PLUS_SIGN	0x02	// '+' instead of ' '
#endif
#ifndef DTOSTR_UPPERCASE
	#define DTOSTR_UPPERCASE	0x04	// 'E' instead of 'e' for the exponent
#endif

/*****************************************************************************/
// I2C-LCD functions:

// A shadow register that simplifies the I2C to LCD communication:
typedef union {
	uint8_t byte;
	struct {
		unsigned LCDD : 4;
		unsigned RS   : 1;
		unsigned P5   : 1;
		unsigned P6   : 1;
		unsigned EN   : 1;
	};
} i2clcdPort_t;
extern i2clcdPort_t i2clcdPort;

void setI2CLCDD(uint8_t lcdd);
void write4BitI2CLCDData(uint8_t data);
void writeI2CLCDCommand(uint8_t cmd);
void initI2CLCD(void);

void clearI2CLCD(void);
void clearPosI2CLCD(uint8_t line, uint8_t pos, uint8_t length);

void writeCharI2CLCD(uint8_t ch);
void writeNStringI2CLCD_P(const char *pstring);
#define writeStringI2CLCD_P(__pstr) writeNStringI2CLCD_P((PSTR(__pstr)))
void writeStringI2CLCD(char *string);
void writeStringLengthI2CLCD(char *string, uint8_t length, uint8_t offset);

void _showScreenI2CLCD_P(const char *line1, const char *line2);
#define showScreenI2CLCD(__line1,__line2); ({_showScreenI2CLCD_P((PSTR(__line1)),(PSTR(__line2)));})

void writeIntegerI2CLCD(int16_t number, uint8_t base);
void writeIntegerLengthI2CLCD(int16_t number, uint8_t base, uint8_t length);
void writeLongI2CLCD(int32_t number, uint8_t base);
#define write32BitIntegerI2CLCD(__number, __base) \
 writeLongI2CLCD(__number, __base)
void writeLongLengthI2CLCD(int32_t number, uint8_t base, uint8_t length);
#define write32BitIntegerLengthI2CLCD(__number, __base, __length) \
 writeLongLengthI2CLCD(__number, __base, __length)
void writeDoubleI2CLCD(double number, uint8_t width, uint8_t prec);
void writeDoubleExpI2CLCD(double number, uint8_t prec, uint8_t flags);

void setCursorPosI2CLCD(uint8_t line, uint8_t pos);

#endif

/******************************************************************************
 * Additional info
 * ****************************************************************************
 * Changelog:
 *
 *  ---> changes are documented in the file "RP6M256I2ClcdTWI.c"
 *
 * ****************************************************************************
 */

/*****************************************************************************/
// EOF
Library

Datei RP6M256I2ClcdTWI.c:

/* ****************************************************************************
 *                           _______________________
 *                           \| RP6  ROBOT SYSTEM |/
 *                            \_-_-_-_-_-_-_-_-_-_/           >>> RP6 M256 WIFI
 * ----------------------------------------------------------------------------
 * ----------------------------- [c]2012 - Dirk -------------------------------
 * ****************************************************************************
 * File: RP6M256I2ClcdTWI.c
 * Version: 1.0
 * Target: RP6 CONTROL M256 WIFI - ATMEGA2560 @16.00MHz
 *         with LC-Display 16x2 chars (CONRAD 190911)
 *         [or Backlight Display 16x2 chars (CONRAD 191621)]
 *         connected to the RP6v2 I2C-Bus with a PHILIPS PCF8574
 *         I2C port expander.
 * Author(s): Dirk
 * ****************************************************************************
 * Description:
 * This is my M256 I2C-LCD Library. It contains functions for driving an
 * LCD with an I2C port expander PCF8574 on the I2C-Bus. The PCF8574 may be
 * built up on an RP6v2 experiment board (CONRAD 191537) as shown here:
 *     ---> http://www.rn-wissen.de/index.php/RP6v2_I2C-Portexpander <---
 *
 * Connection of the LCD to the PCF8574:
 *  PCF8574   LCD
 *   P0..P3   D4..D7
 *   P4       RS
 *   P5, P6   n.c.
 *   P7       EN
 * LCD D0..D3 and LCD RW are connected to GND.
 * This pin allocation is compatible with "RN-Wissen", BASCOM-AVR: AN #118
 * (lcd_i2c.lib) and "Asuro Wiki: LCD Erweiterung".
 *
 * ****************************************************************************
 * THE CHANGELOG CAN BE FOUND AT THE END OF THIS FILE!
 * ****************************************************************************
 */

/*****************************************************************************/
// Includes:

#include "RP6M256I2ClcdTWI.h"

/*****************************************************************************/
// I2C-LCD functions:

// All I2C-LCD routines are prepared to control a 2x16 character LCD.
// If you want to connect a bigger LCD you need to change some things in
// these routines! (especially in the initI2CLCD, setCursorI2CLCD and
// showScreenI2CLCD routines)

// A shadow register for the I2C to LCD communication:
i2clcdPort_t i2clcdPort;

char lcd_tmp_buffer[17];

/**
 * Sets new 4-bit data for the LCD and also pulses the enable line of the
 * LCD to 'inform' the LCD about the new data.
 */
void setI2CLCDD(uint8_t lcdd)
{
	i2clcdPort.LCDD = lcdd;
	i2clcdPort.EN = 1;
	I2CTWI_transmitByte(PCF8574_LCD_ADR, i2clcdPort.byte);
	delayCycles(50);
	i2clcdPort.EN = 0;
	I2CTWI_transmitByte(PCF8574_LCD_ADR, i2clcdPort.byte);
}

/**
 * Write a 8bit-byte in two nibbles of 4bit to the LCD.
 */
void write4BitI2CLCDData(uint8_t data)
{
	setI2CLCDD(data >> 4);
	setI2CLCDD(data);
	delayCycles(150);
}

/**
 * Write a command to the LCD.
 */
void writeI2CLCDCommand(uint8_t cmd)
{
	i2clcdPort.RS = 0;
	write4BitI2CLCDData(cmd);
	delayCycles(150);
}

/**
 * Initialize the LCD. Always call this before using the I2C-LCD!
 *
 */
void initI2CLCD(void)
{
	//delayCycles(34000); No need for Power ON delay as usually the
	// Bootloader should have been executed before...
	setI2CLCDD(0b0011);
	delayCycles(18000);
	setI2CLCDD(0b0011);
	delayCycles(5500);
	setI2CLCDD(0b0011);
	delayCycles(5500);
	setI2CLCDD(0b0010);
	delayCycles(5500);
	writeI2CLCDCommand(0b00101000);
	delayCycles(5500);
	writeI2CLCDCommand(0b00001000);
	delayCycles(5500);
	writeI2CLCDCommand(0b00000001);
	delayCycles(5500);
	writeI2CLCDCommand(0b00000010);
	delayCycles(5500);
	writeI2CLCDCommand(0b00001100);
	delayCycles(5500);
}

/**
 * Clears the whole LCD!
 */
void clearI2CLCD(void)
{
	writeI2CLCDCommand(0b00000001);
	delayCycles(5500);
}

/**
 * Clears some characters after the given position.
 */
void clearPosI2CLCD(uint8_t line, uint8_t pos, uint8_t length)
{
	setCursorPosI2CLCD(line, pos);
	while(length--)
		writeCharI2CLCD(' ');
}

/**
 * Write a single character to the LCD.
 *
 * Example:
 *
 *			writeCharI2CLCD('R');
 *			writeCharI2CLCD('P');
 *			writeCharI2CLCD('6');
 *			writeCharI2CLCD(' ');
 *			writeCharI2CLCD('0');
 *			writeCharI2CLCD(48); // 48 is ASCII code for '0'
 *			writeCharI2CLCD(49); // '1'
 *			writeCharI2CLCD(50); // '2'
 *			writeCharI2CLCD(51); // '3'
 *			//...
 *
 *			would output:
 *			RP6 00123
 *			at the current cursor position!
 *			use setCursorPosI2CLCD function to move the cursor to a
 *			different location!
 */
void writeCharI2CLCD(uint8_t ch)
{
	i2clcdPort.RS = 1;
	write4BitI2CLCDData(ch);
	delayCycles(50);
}

/**
 * Writes a null terminated string from flash program memory to the LCD.
 * You can use the macro writeStringI2CLCD_P(STRING); instead, this macro
 * ensures that the String is stored in program memory only!
 *
 * Example:
 *
 *			writeNStringI2CLCD_P(PSTR("RP6 M256"));
 *
 *			// There is also a Macro that makes life easier and
 *			// you can simply write:
 *			writeStringI2CLCD_P("RP6 M256");
 *
 */
void writeNStringI2CLCD_P(const char *pstring)
{
    uint8_t c;
    for (; (c = pgm_read_byte_near(pstring++)); writeCharI2CLCD(c));
}

/**
 * Writes a String from SRAM to the LCD.
 */
void writeStringI2CLCD(char *string)
{
	while(*string)
		writeCharI2CLCD(*string++);
}

/**
 * Writes a string with specified length and offset from SRAM to the LCD.
 * If it is a null terminated string, output will be stopped at the
 * end. It does not need to be null terminated, but it is recommended
 * to use only null terminated strings/buffers, otherwise the function could
 * output any SRAM memory data stored after the string until it reaches a 0
 * or the specified length!
 *
 * Example:
 *
 *			writeStringLengthI2CLCD("RP6 Robot Sytem",16,0);
 *			// would output: "RP6 Robot Sytem\n"
 *			writeStringLengthI2CLCD("RP6 Robot Sytem",11,4);
 *			// would output: "Robot System"
 * 			writeStringLengthI2CLCD("RP6 Robot Sytem",40,4);
 *			// would output: "Robot System"
 *			// No matter if the specified length is 40 characters!
 *
 */
void writeStringLengthI2CLCD(char *string, uint8_t length, uint8_t offset)
{
	for(string = &string[offset]; *string && length; length--)
		writeCharI2CLCD(*string++);
}

/**
 * This function is useful for displaying text screens on the LCD.
 * It clears the whole LCD and writes the two Strings to line 1 and
 * line 2.
 */
void _showScreenI2CLCD_P(const char *line1, const char *line2)
{
	clearI2CLCD();
	writeNStringI2CLCD_P(line1);
	setCursorPosI2CLCD(1, 0);
	writeNStringI2CLCD_P(line2);
}

/**
 * Write a number (with specified base) to the LCD.
 *
 * Example:
 *
 *			// Write a hexadecimal number to the LCD:
 *			writeIntegerI2CLCD(0xAACC,16);
 *			// Instead of 16 you can also write "HEX" as this is defined in the
 *			// RP6M256I2ClcdTWI.h :
 *			writeIntegerI2CLCD(0xAACC, HEX);
 *			// Other Formats:
 *			writeIntegerI2CLCD(1024,DEC);  	// Decimal
 *			writeIntegerI2CLCD(511,OCT);	// Octal
 *			writeIntegerI2CLCD(0b11010111,BIN); // Binary
 */
void writeIntegerI2CLCD(int16_t number, uint8_t base)
{
	itoa(number, &lcd_tmp_buffer[0], base);
	writeStringI2CLCD(&lcd_tmp_buffer[0]);
}

/**
 * Same as writeIntegerI2CLCD, but with defined length.
 * This means this routine will add leading zeros to the number if length is
 * larger than the actual value or cut the upper digits if length is smaller
 * than the actual value.
 *
 * Example:
 *
 *			// Write a hexadecimal number to the LCD:
 *			writeIntegerLengthI2CLCD(0xAACC, 16, 8);
 *			// Instead of 16 you can also write "HEX" as this is defined in the
 *			// RP6M256I2ClcdTWI.h :
 *			writeIntegerLengthI2CLCD(0xAACC, HEX, 8);
 *			// Other Formats:
 *			writeIntegerLengthI2CLCD(1024,DEC,6);  	// Decimal
 *			writeIntegerLengthI2CLCD(511,OCT,4);	// Octal
 *			writeIntegerLengthI2CLCD(0b11010111,BIN,8); // Binary
 */
void writeIntegerLengthI2CLCD(int16_t number, uint8_t base, uint8_t length)
{
	char buffer[17];
	itoa(number, &buffer[0], base);
	int8_t cnt = length - strlen(buffer);
	if(cnt > 0) {
		for(; cnt > 0; cnt--, writeCharI2CLCD('0'));
		writeStringI2CLCD(&buffer[0]);
	}
	else
		writeStringLengthI2CLCD(&buffer[0], length, -cnt);
}

/**
 * Write a long number (with specified base) to the LCD.
 *
 * Example:
 *
 *			// Write a hexadecimal number to the LCD:
 *			writeLongI2CLCD(0xAACC,16);
 *			// Instead of 16 you can also write "HEX" as this is defined in the
 *			// RP6M256I2ClcdTWI.h :
 *			writeLongI2CLCD(0xAACC, HEX);
 *			// Other Formats:
 *			writeLongI2CLCD(1024,DEC);  	// Decimal
 *			writeLongI2CLCD(511,OCT);		// Octal
 *			writeLongI2CLCD(0b11010111,BIN); // Binary
 */
void writeLongI2CLCD(int32_t number, uint8_t base)
{char buffer[33];
	ltoa(number, &buffer[0], base);
	writeStringI2CLCD(&buffer[0]);
}

/**
 * Same as writeLongI2CLCD, but with defined length.
 * This means this routine will add leading zeros to the number if length is
 * larger than the actual value or cut the upper digits if length is smaller
 * than the actual value.
 *
 * Example:
 *
 *			// Write a hexadecimal number to the LCD:
 *			writeLongLengthI2CLCD(0xAACC, 16, 8);
 *			// Instead of 16 you can also write "HEX" as this is defined in the
 *			// RP6M256I2ClcdTWI.h :
 *			writeLongLengthI2CLCD(0xAACC, HEX, 8);
 *			// Other Formats:
 *			writeLongLengthI2CLCD(1024,DEC,6);		// Decimal
 *			writeLongLengthI2CLCD(511,OCT,4);		// Octal
 *			writeLongLengthI2CLCD(0b11010111,BIN,8); // Binary
 */
void writeLongLengthI2CLCD(int32_t number, uint8_t base, uint8_t length)
{char buffer[33];
	ltoa(number, &buffer[0], base);
	int8_t cnt = length - strlen(buffer);
	if(cnt > 0) {
		for(; cnt > 0; cnt--, writeCharI2CLCD('0'));
		writeStringI2CLCD(&buffer[0]);
	}
	else
		writeStringLengthI2CLCD(&buffer[0], length, -cnt);
}

/**
 * Write a floating point number to the LCD.
 *
 * Example:
 *
 *			// Write a floating point number to the LCD (no exponent):
 *			writeDoubleI2CLCD(1234567.890, 11, 3);
 *
 * The value of prec (precision) defines the number of decimal places.
 * For 32 bit floating point variables (float, double ...) 6 is
 * the max. value for prec (7 relevant digits).
 * The value of width defines the overall number of characters in the
 * floating point number including the decimal point. The number of
 * pre-decimal positions is: (width - prec - 1).
 */
void writeDoubleI2CLCD(double number, uint8_t width, uint8_t prec)
{char buffer[width + 1];
	dtostrf(number, width, prec, &buffer[0]);
	writeStringI2CLCD(&buffer[0]);
}

/**
 * Write a floating point number to the LCD.
 *
 * Example:
 *
 *			// Write a floating point number to the LCD (with exponent):
 *			writeDoubleExpI2CLCD(-123.456, 3, 0);
 *			// ... if you want a '+' sign for positive numbers:
 *			writeDoubleExpI2CLCD(+123.456, 3, DTOSTR_PLUS_SIGN);
 *
 * The value of prec (precision) defines the number of decimal places.
 * For 32 bit floating point variables (float, double ...) 6 is
 * the max. value for prec (7 relevant digits).
 */
void writeDoubleExpI2CLCD(double number, uint8_t prec, uint8_t flags)
{char buffer[prec + 8];
	dtostre(number, &buffer[0], prec, flags);
	writeStringI2CLCD(&buffer[0]);
}

/**
 * Sets the cursor position on LCD.
 */
void setCursorPosI2CLCD(uint8_t line, uint8_t pos)
{
	pos |= 128;
	if(line == 1) pos += 0x40;
	writeI2CLCDCommand(pos);
}

/******************************************************************************
 * Additional info
 * ****************************************************************************
 * Changelog:
 * - v. 1.0 (initial release) 18.08.2012 by Dirk
 *
 * ****************************************************************************
 */

/*****************************************************************************/
// EOF

I2C-LCD-Demos

Die folgenden I2C-LCD-Demoprogramme sind eine Anpassung des "Example_01_LCD" Beispiels (RP6Control_LCD.c) für die RP6 CONTROL M32. Die Demos zeigen den Text "HELLO WORLD" oder "HALLO WELT!", der sich auf dem I2C-LCD hin und her bewegt.

RP6v2 Base

Config

Die Konfigurations-Datei der RP6v2 I2C-LCD Library gehört in den jeweiligen Programmordner.

Datei RP6I2ClcdTWIConfig.h:

/**
 * Settings for the RP6I2ClcdTWI Library
 */

#ifndef RP6I2CLCDCONFIG_H
#define RP6I2CLCDCONFIG_H


/**
 * Define the target here:
 * (Use only ONE of them! Never both!)
 */
#define RP6BASE
//#define RP6CONTROL

/**
 * Define the PCF8574 I2C address here:
 */
#define PCF8574_LCD_ADR  0x70


#endif
Demo

makefile:

...
TARGET = RP6_I2ClcdTWI
...
SRC += $(RP6_LIB_PATH)/RP6base/RP6RobotBaseLib.c
SRC += $(RP6_LIB_PATH)/RP6common/RP6uart.c
SRC += $(RP6_LIB_PATH)/RP6common/RP6I2CmasterTWI.c
SRC += $(RP6_LIB_PATH)/RP6common/RP6I2ClcdTWI.c
...

Datei RP6_I2ClcdTWI.c:

/*
 * ****************************************************************************
 * RP6 ROBOT SYSTEM - ROBOT BASE EXAMPLES
 * ****************************************************************************
 * Example: I2C-LCD and Serial Interface Example
 * Author(s): Dirk
 * ****************************************************************************
 * Description:
 * A more complex "Hello World" program for RP6v2.
 * It writes text to the PC with the serial interface
 * and shows a moving text on the I2C-LCD.
 *
 * ############################################################################
 * The Robot does NOT move in this example! You can simply put it on a table
 * next to your PC and you should connect it to the PC via the USB Interface!
 * ############################################################################
 * ****************************************************************************
 */

/*****************************************************************************/
// Includes:

#include "RP6RobotBaseLib.h"	// The RP6 Robot Base Library.
				// Always needs to be included!
#include "RP6I2CmasterTWI.h"	// Include the I2C-Bus Master Library

#include "RP6I2ClcdTWI.h"	// Include the I2C-LCD Library

/*****************************************************************************/
// I2C

/**
 * This function gets called automatically if there was an I2C Error like
 * the slave sent a "not acknowledge" (NACK, error codes e.g. 0x20 or 0x30).
 * The most common mistakes are:
 *   - using the wrong address for the slave
 *   - slave not active or not connected to the I2C-Bus
 *   - too fast requests for a slower slave
 * Be sure to check this if you get I2C errors!
 */
void I2C_transmissionError(uint8_t errorState)
{
	writeString_P("\nI2C ERROR - TWI STATE: 0x");
	writeInteger(errorState, HEX);
	writeChar('\n');
}

/*****************************************************************************/

/**
 * Two running I2C-LCD texts with Stopwatch2 and 400ms refresh rate:
 */
void task_runI2CLCDText(void)
{
	static uint8_t cnt = 0; // A counting variable for text position
	static uint8_t dir = 0; // Moving direction for I2C-LCD text

	if(getStopwatch2() > 400) // 400ms
	{
		// Hint: This is just a simple example and you need to adjust
		// some parameters if you want to change the moving text!
		// Like it is now - both strings must have 5 characters!

		// Overwrite the two previous Strings:
		clearPosI2CLCD(0, cnt, 5);
		clearPosI2CLCD(1, (11 - cnt), 5);

		// Increase/Decrease the cursor position depending on
		// direction.
		if(dir == 0)
			cnt++;
		else
			cnt--;
		// Change the direction:
		if(cnt > 10)
			dir = 1;
		if(cnt < 1)
			dir = 0;

		// Write two text strings to the I2C-LCD...
		// ... the first starts at the first position on the LCD:
		setCursorPosI2CLCD(0, cnt); // Sets cursor position on the display
		writeStringI2CLCD_P("HELLO"); // Writes a string from flash to the
		// I2C-LCD ... and the second is on the second line and starts at the
		// last position.
		setCursorPosI2CLCD(1, (11 - cnt) );
		writeStringI2CLCD_P("WORLD");

		// Reset Stopwatch #2:
		setStopwatch2(0);
	}
}

/*****************************************************************************/
// Main function - The program starts here:

int main(void)
{
	initRobotBase();	// Always call this first! The Processor will not work
				// correctly otherwise.

	I2CTWI_initMaster(100); // Initialize the TWI Module for Master operation
				// with 100kHz SCL Frequency
				// PCF8574 and PCF8591 are only specified for
				// up to 100kHz SCL freq - not 400kHz HighSpeed mode!

	// Register the event handlers:
	I2CTWI_setTransmissionErrorHandler(I2C_transmissionError);

	initI2CLCD();	// Initialize the I2C-LC-Display (I2C-LCD)
			// Always call this before using the I2C-LCD!

	// ---------------------------------------
	// Write messages to the Serial Interface
	// (here it is a RP6v2 text logo):
	writeString_P("\n\n   _______________________\n");
	writeString_P("   \\| RP6  ROBOT SYSTEM |/\n");
	writeString_P("    \\_-_-_-_-_-_-_-_-_-_/\n\n");

	writeString_P("RP6v2 Base. I2C-LC-DISPLAY.\n");
	writeString_P("Hello World! Example Program!\n");
	writeString_P("Let's go! :)\n");

	setLEDs(0b111111);
	mSleep(500);
	setLEDs(0b000000);

	powerON();

	showScreenI2CLCD("################", "################");
	mSleep(1500);
	showScreenI2CLCD("<< RP6v2 Base >>", "<I2C-LC-DISPLAY>");
	mSleep(2500);
	showScreenI2CLCD("Hello World", "Example Program");
	mSleep(2500);
	clearI2CLCD(); // Clear the whole I2C-LCD screen

	startStopwatch2();

	while(true)
	{
		task_runI2CLCDText();
		task_I2CTWI();
		task_RP6System();
	}
	return 0;
}

RP6 CONTROL M32

Config

Die Konfigurations-Datei der RP6v2 I2C-LCD Library gehört in den jeweiligen Programmordner.

Datei RP6I2ClcdTWIConfig.h:

/**
 * Settings for the RP6I2ClcdTWI Library
 */

#ifndef RP6I2CLCDCONFIG_H
#define RP6I2CLCDCONFIG_H


/**
 * Define the target here:
 * (Use only ONE of them! Never both!)
 */
//#define RP6BASE
#define RP6CONTROL

/**
 * Define the PCF8574 I2C address here:
 */
#define PCF8574_LCD_ADR  0x70


#endif
Demo

makefile:

...
TARGET = RP6_I2ClcdTWI
...
SRC += $(RP6_LIB_PATH)/RP6control/RP6ControlLib.c
SRC += $(RP6_LIB_PATH)/RP6common/RP6uart.c
SRC += $(RP6_LIB_PATH)/RP6common/RP6I2CmasterTWI.c
SRC += $(RP6_LIB_PATH)/RP6common/RP6I2ClcdTWI.c
...

Datei RP6_I2ClcdTWI.c:

/*
 * ****************************************************************************
 * RP6 ROBOT SYSTEM - RP6 CONTROL M32 Examples
 * ****************************************************************************
 * Example: I2C-LCD and Serial Interface Example
 * Author(s): Dirk
 * ****************************************************************************
 * Description:
 * A more complex "Hello World" program for the RP6 CONTROL M32.
 * It writes text to the PC with the serial interface
 * and shows a moving text on the I2C-LCD.
 *
 * ############################################################################
 * The Robot does NOT move in this example! You can simply put it on a table
 * next to your PC and you should connect it to the PC via the USB Interface!
 * ############################################################################
 * ****************************************************************************
 */

/*****************************************************************************/
// Includes:

#include "RP6ControlLib.h" 	// The RP6 Control Library.
				// Always needs to be included!
#include "RP6I2CmasterTWI.h"	// Include the I2C-Bus Master Library

#include "RP6I2ClcdTWI.h"	// Include the I2C-LCD Library

/*****************************************************************************/
// I2C

/**
 * This function gets called automatically if there was an I2C Error like
 * the slave sent a "not acknowledge" (NACK, error codes e.g. 0x20 or 0x30).
 * The most common mistakes are:
 *   - using the wrong address for the slave
 *   - slave not active or not connected to the I2C-Bus
 *   - too fast requests for a slower slave
 * Be sure to check this if you get I2C errors!
 */
void I2C_transmissionError(uint8_t errorState)
{
	writeString_P("\nI2C ERROR - TWI STATE: 0x");
	writeInteger(errorState, HEX);
	writeChar('\n');
}

/*****************************************************************************/

/**
 * Two running I2C-LCD texts with Stopwatch2 and 400ms refresh rate:
 */
void task_runI2CLCDText(void)
{
	static uint8_t cnt = 0; // A counting variable for text position
	static uint8_t dir = 0; // Moving direction for I2C-LCD text

	if(getStopwatch2() > 400) // 400ms
	{
		// Hint: This is just a simple example and you need to adjust
		// some parameters if you want to change the moving text!
		// Like it is now - both strings must have 5 characters!

		// Overwrite the two previous Strings:
		clearPosI2CLCD(0, cnt, 5);
		clearPosI2CLCD(1, (11 - cnt), 5);

		// Increase/Decrease the cursor position depending on
		// direction.
		if(dir == 0)
			cnt++;
		else
			cnt--;
		// Change the direction:
		if(cnt > 10)
			dir = 1;
		if(cnt < 1)
			dir = 0;

		// Write two text strings to the I2C-LCD...
		// ... the first starts at the first position on the LCD:
		setCursorPosI2CLCD(0, cnt); // Sets cursor position on the display
		writeStringI2CLCD_P("HELLO"); // Writes a string from flash to the
		// I2C-LCD ... and the second is on the second line and starts at the
		// last position.
		setCursorPosI2CLCD(1, (11 - cnt) );
		writeStringI2CLCD_P("WORLD");

		// Reset Stopwatch #2:
		setStopwatch2(0);
	}
}

/*****************************************************************************/
// Main function - The program starts here:

int main(void)
{
	initRP6Control();	// Always call this first! The Processor will not work
				// correctly otherwise.

	I2CTWI_initMaster(100); // Initialize the TWI Module for Master operation
				// with 100kHz SCL Frequency
				// PCF8574 and PCF8591 are only specified for
				// up to 100kHz SCL freq - not 400kHz HighSpeed mode!

	// Register the event handlers:
	I2CTWI_setTransmissionErrorHandler(I2C_transmissionError);

	initI2CLCD();	// Initialize the I2C-LC-Display (I2C-LCD)
			// Always call this before using the I2C-LCD!

	// ---------------------------------------
	// Write messages to the Serial Interface
	// (here it is a RP6 text logo):
	writeString_P("\n\n   _______________________\n");
	writeString_P("   \\| RP6  ROBOT SYSTEM |/\n");
	writeString_P("    \\_-_-_-_-_-_-_-_-_-_/\n\n");

	writeString_P("RP6 Control M32. I2C-LC-DISPLAY.\n");
	writeString_P("Hello World! Example Program!\n");
	writeString_P("Let's go! :)\n");

	setLEDs(0b1111);
	mSleep(500);
	setLEDs(0b0000);

	showScreenI2CLCD("################", "################");
	mSleep(1500);
	showScreenI2CLCD("RP6 Control M32 ", "<I2C-LC-DISPLAY>");
	mSleep(2500);
	showScreenI2CLCD("Hello World", "Example Program");
	mSleep(2500);
	clearI2CLCD(); // Clear the whole I2C-LCD screen

	startStopwatch2();

	while(true)
	{
		task_runI2CLCDText();
		task_I2CTWI();
	}
	return 0;
}

RP6 CCPRO M128

Datei RP6_I2Clcd.cc:

/*******************************************************************************
 * RP6 C-Control PRO M128 Erweiterungsmodul
 * ----------------------------------------------------------------------------
 * I2C-LCD und Serielle Schnittstelle Beispielprogramm
 * ----------------------------------------------------------------------------
 * Ein komplexeres "Hallo Welt" Programm für die RP6 C-Control PRO M128.
 * Dieses Programm gibt einen Text auf der seriellen Schnittstelle aus und
 * zeigt einen sich bewegenden Text auf dem I2C-LCD (sofern vorhanden).
 *
 * Hinweis:
 * Für allgemeine Programmierhinweise zur CCPRO schauen Sie sich bitte die
 * CCPRO Dokumentation und die zugehörigen Beispielprogramme an!
 * Es sei auch nochmals darauf hingewiesen, dass die normalen Beispielprogramme
 * für die CCPRO nur zum Teil direkt auf dem RP6-CCPRO Modul laufen.
 * Die Anschlussbelegung ist natürlich komplett anders als auf dem
 * C-Control Application Board. Auch die LCD Ansteuerung ist leicht anders,
 * da hier noch zusätzliche LEDs mit an dem Schieberegister angeschlossen sind.
 * --> Die C-Control Beispielprogramme müssen ein klein wenig angepasst
 * werden bevor sie auf diesem Modul laufen können!
 *
 * *****************************************************************************
 * Der Roboter bewegt sich in diesem Beispielprogramm NICHT und kann
 * am Rechner angeschlossen bleiben!
 ******************************************************************************/

// WICHTIG: Immer die RP6CCLib mit einbinden:
#include "../../RP6CCLib/RP6CCLib.cc"

// I2C Bus Adresse des PCF8574:
#define PCF8574_LCD_ADR 0x70

// Die neue RP6I2ClcdCCLib einbinden:
#include "../../RP6CCLib/RP6I2ClcdCClib.cc"

int irqcnt;                                 // globale Variablendeklaration
byte cnt1;

/******************************************************************************/

/**
 * Zwei laufende I2C-LCD Texte mit 400ms Wiederhol-Rate:
 */
void runI2CLCDText(void)
{
	static byte cnt; // Eine Zählvariable für die Textposition
	static byte dir; // Bewegungsrichtung für den I2C-LCD Text

	if(cnt1 > 40) // 400ms
	{
		clearPosI2CLCD(0, cnt, 5);
		clearPosI2CLCD(1, (11 - cnt), 5);

		if(dir == 0)
			cnt++;
		else
			cnt--;

		if(cnt > 10)
			dir = 1;
		if(cnt < 1)
			dir = 0;

		setCursorPosI2CLCD(0, cnt);
		writeStringI2CLCD("HALLO");

		setCursorPosI2CLCD(1, (11 - cnt) );
		writeStringI2CLCD("WELT!");

		cnt1 = 0;
    }
}

/******************************************************************************/
void main(void)
{
    // WICHTIG! Immer als erstes aufrufen:
    RP6_CCPRO_Init(); // Auf Startsignal warten, LCD und andere Dinge initialisieren !

    // Immer aufrufen, bevor das I2C-LCD benutzt wird:
    RP6_initI2CLCD(); // Das I2C-LCD initialisieren

    Irq_SetVect(INT_TIM2COMP, INT_10ms);    // ISR definieren
                                            // Timer2: 10ms Interrupt

    // ------------------------------------------------------

    // Text über serielle Schnittstelle ausgeben:
    newline(); // Neue Zeile
    println("   ________________________");
    println("   \\| RP6  ROBOT SYSTEM |/");
    println("    \\_-_-_-_-_-_-_-_-_-_/ ");
    newline();
    println("RP6 C-Control M128. I2C-LC-DISPLAY.");
    newline();
    println("Hallo Welt! Beispielprogramm!");
    newline();
    println("Let's go!");
    newline();

    // 0,5 Sekunden Pause:
    AbsDelay(500);

    // Zwei Zeilen Text mit dem I2C-LCD anzeigen:
    showScreenI2CLCD("################", "################");
    AbsDelay(1500);
    showScreenI2CLCD(" RP6 CCPRO M128 ", "<I2C-LC-DISPLAY>");
    AbsDelay(2500);
    showScreenI2CLCD("Hallo Welt", "Beispielprogramm");
    AbsDelay(2500);
    clearI2CLCD(); // Lösche die ganze I2C-LCD Anzeige

    // ------------------------------------------------------

    while(1)
    {
        runI2CLCDText();
    }
}

//------------------------------------------------------------------------------
// Interrupt Routine
//
void INT_10ms(void)
{
    cnt1++;                                 // Zähler für die Wiederhol-Rate

    irqcnt = Irq_GetCount(INT_TIM2COMP);    // Interrupt Request Counter
}

//------------------------------------------------------------------------------

RP6 M256 WiFi

makefile:

...
TARGET = RP6M256_I2ClcdTWI
...
SRC += $(RP6_LIB_PATH)/RP6common/RP6I2CmasterTWI.c
SRC += $(RP6_LIB_PATH)/RP6control_M256_WIFI/RP6M256Lib.c
SRC += $(RP6_LIB_PATH)/RP6control_M256_WIFI/RP6M256uart.c
SRC += $(RP6_LIB_PATH)/RP6control_M256_WIFI/RP6M256_WIFIlib.c
SRC += $(RP6_LIB_PATH)/RP6control_M256_WIFI/sdc/sd_raw.c
SRC += $(RP6_LIB_PATH)/RP6control_M256_WIFI/sdc/fat.c
SRC += $(RP6_LIB_PATH)/RP6control_M256_WIFI/sdc/partition.c
SRC += $(RP6_LIB_PATH)/RP6control_M256_WIFI/sdc/byteordering.c
SRC += $(RP6_LIB_PATH)/RP6control_M256_WIFI/RP6M256I2ClcdTWI.c
...

Datei RP6M256_I2ClcdTWI.c:

/*
 * ****************************************************************************
 * RP6 ROBOT SYSTEM - RP6 CONTROL M256 Examples
 * ****************************************************************************
 * Example: I2C-LCD and WIFI Interface Example
 * Author(s): Dirk
 * ****************************************************************************
 * Description:
 * A more complex "Hello World" program for the RP6 M256 WIFI.
 * It writes text to the PC with the WIFI interface
 * and shows a moving text on the I2C-LCD.
 *
 * ############################################################################
 * The Robot does NOT move in this example! You can simply put it on a table
 * next to your PC and you should connect it to the PC via the USB Interface!
 * You should also connect to it via WIFI.
 * ############################################################################
 * ****************************************************************************
 */

/*****************************************************************************/
// Includes:

#include "RP6M256I2ClcdTWI.h"	// Include the I2C-LCD Library

/*****************************************************************************/
// I2C Error handler

/**
 * This function gets called automatically if there was an I2C Error like
 * the slave sent a "not acknowledge" (NACK, error codes e.g. 0x20 or 0x30).
 * The most common mistakes are:
 *   - using the wrong address for the slave
 *   - slave not active or not connected to the I2C-Bus
 *   - too fast requests for a slower slave
 * Be sure to check this if you get I2C errors!
 */
void I2C_transmissionError(uint8_t errorState)
{
	writeString_P_WIFI("\nI2C ERROR - TWI STATE: 0x");
	writeInteger_WIFI(errorState, HEX);
	writeChar_WIFI('\n');
}

/*****************************************************************************/

/**
 * Two running I2C-LCD texts with Stopwatch2 and 400ms refresh rate:
 */
void task_runI2CLCDText(void)
{
	static uint8_t cnt = 0; // A counting variable for text position
	static uint8_t dir = 0; // Moving direction for I2C-LCD text

	if(getStopwatch2() > 400) // 400ms
	{
		// Hint: This is just a simple example and you need to adjust
		// some parameters if you want to change the moving text!
		// Like it is now - both strings must have 5 characters!

		// Overwrite the two previous Strings:
		clearPosI2CLCD(0, cnt, 5);
		clearPosI2CLCD(1, (11 - cnt), 5);

		// Increase/Decrease the cursor position depending on
		// direction.
		if(dir == 0)
			cnt++;
		else
			cnt--;
		// Change the direction:
		if(cnt > 10)
			dir = 1;
		if(cnt < 1)
			dir = 0;

		// Write two text strings to the I2C-LCD...
		// ... the first starts at the first position on the LCD:
		setCursorPosI2CLCD(0, cnt); // Sets cursor position on the display
		writeStringI2CLCD_P("HELLO"); // Writes a string from flash to the
		// I2C-LCD ... and the second is on the second line and starts at the
		// last position.
		setCursorPosI2CLCD(1, (11 - cnt) );
		writeStringI2CLCD_P("WORLD");

		// Reset Stopwatch #2:
		setStopwatch2(0);
	}
}

/*****************************************************************************/
// Main function - The program starts here:

int main(void)
{
	initRP6M256();    // Always call this first! The Processor will not work
					  // correctly otherwise.

	I2CTWI_initMaster(100); // Initialize the TWI Module for Master operation
							// with 100kHz SCL Frequency
							// PCF8574 and PCF8591 are only specified for
							// up to 100kHz SCL freq - not 400kHz HighSpeed mode!

	// Register the event handlers:
	I2CTWI_setTransmissionErrorHandler(I2C_transmissionError);

	initI2CLCD();	// Initialize the I2C-LC-Display (I2C-LCD)
					// Always call this before using the I2C-LCD!

	// ---------------------------------------
	// Write messages to the WIFI Interface
	// (here it is a RP6v2 text logo):
	writeString_P_WIFI("\n\n   _______________________\n");
	writeString_P_WIFI("   \\| RP6  ROBOT SYSTEM |/\n");
	writeString_P_WIFI("    \\_-_-_-_-_-_-_-_-_-_/\n\n");

	writeString_P_WIFI("RP6v2-M256-WIFI. I2C-LC-DISPLAY.\n");
	writeString_P_WIFI("Hello World! Example Program!\n");
	writeString_P_WIFI("Let's go! :)\n");

	setLEDs(0b1111);
	mSleep(500);
	setLEDs(0b0000);

	showScreenI2CLCD("################", "################");
	mSleep(1500);
	showScreenI2CLCD("RP6v2-M256-WIFI ", "<I2C-LC-DISPLAY>");
	mSleep(2500);
	showScreenI2CLCD("Hello World", "Example Program");
	mSleep(2500);
	clearI2CLCD(); // Clear the whole I2C-LCD screen

	startStopwatch2();

	while(true)
	{
		task_runI2CLCDText();
		task_I2CTWI();
	}
	return 0;
}

I/O-Port-Demos

Wenn mit dem PCF8574 nicht ein LC-Display angesteuert werden soll, kann man die 8 I/O-Ports einzeln als Ein- oder Ausgänge verwenden. Es gibt beim PCF8574 kein "Datenrichtungsregister" (DDRx), wie bei den Atmel-Microcontrollern. Die I/O-Ports sind "quasi-bidirektionale I/Os", die praktisch "gleichzeitig" Ein- und Ausgang sind. Mit I2C-Schreib-Befehlen können die I/O-Ports auf High- oder Lowpegel geschaltet werden. Mit I2C-Lese-Befehlen können die Eingangspegel an den I/O-Ports ausgelesen werden. Sinnvoll kann man nur die I/O-Ports auslesen, die vorher mit einem I2C-Schreib-Befehl auf Highpegel (1) geschaltet wurden.

RP6v2 Base und CONTROL M32

Die Demo "RP6Base_I2CMaster_01.c" aus den RP6v2 Examples zeigt, wie die 8 I/O-Ports des PCF8574 als Ausgänge genutzt werden.

Beispiel:

#define PCF8574_IO_ADR  0x70
uint8_t outByte;

I2CTWI_transmitByte(PCF8574_IO_ADR, outByte);

Über den I2C-Bus wird outByte an einen PCF8574AP mit der I2C-Adresse 0x70 gesendet. Der PCF8574 schaltet danach die 8 I/O-Ports entsprechend dem Inhalt von outByte. Hat outByte z.B. den Wert 112 (binär 01110000), dann werden die I/O-Ports P4..P6 Highpegel (1), die restlichen I/O-Ports Lowpegel (0) führen. Diese Pegel bleiben so lange erhalten, bis ein neuer Schreib-Befehl über den I2C-Bus eingeht.


Will man alle I/O-Ports des PCF8574 als Eingänge nutzen, müssen sie zunächst auf Highpegel (1) geschaltet werden (direkt nach dem Anlegen der Betriebsspannung ist das jedoch nicht erforderlich!):

I2CTWI_transmitByte(PCF8574_IO_ADR, 255);

Das Einlesen der I/O-Ports erfolgt dann so:

uint8_t inByte;

inByte = I2CTWI_readByte(PCF8574_IO_ADR);

Es ist möglich, nicht alle I/O-Ports des PCF8574 gleichzeitig als Ein- oder Ausgänge zu verwenden. Die I/O-Ports, die als Eingänge dienen sollen, müssen bei allen I2C-Schreib-Befehlen auf Highpegel (1) bleiben,- deren Pegel können dann mit I2C-Lese-Befehlen eingelesen werden.

Interrupt

Der PCF8574 hat einen Ausgang INT, mit dem der Portexpander einem Microcontroller mitteilen kann, dass sich der Pegel an einem seiner I/O-Ports geändert hat. Dazu muss es zusätzlich zum I2C-Bus eine Verbindung zu einem Microcontroller-Portpin geben. Bei der hier vorgestellten I2C-Portexpander-Platine kann der INT-Ausgang des PCF8574 über Jumper JP4 mit INT1 des XBUS (Pin 8) des RP6-Systems verbunden werden. Das bedeutet, dass INT des PCF8574 auf allen Microcontroller-Plattformen (Base, CONTROL M32, CCPRO M128 und M256) des RP6/RP6v2-Systems ausgewertet werden kann. Sinnvoll ist, dass der jeweilige I2C-Master die Auswertung des INT-Signals des PCF8574 vornimmt. Er kann über den I2C-Bus Daten vom Portexpander einlesen, wenn dieser angezeigt hat, dass sich Eingangspegel verändert haben. Der PCF8574 zeigt über den INT-Ausgang innerhalb von max. 4 us diese Veränderung an, indem INT auf Lowpegel (0) wechselt. Normalerweise liegt dieser Ausgang INT durch den Pullup-Widerstand 2,2 kOhm (trotz des 10 kOhm Pulldown-Widerstands R34 auf dem RP6v2 Mainboard) auf Highpegel (1).

Wenn die RP6v2 Base I2C-Master ist, kann das INT-Signal mit deren Portpin PA4, mit der CONTROL M32 als I2C-Master mit deren Portpin PD2 ausgewertet werden.

Muss ein I2C-Master also rasch auf Pegeländerungen des Portexpanders reagieren, fragt er regelmäßig den jeweiligen Portpin auf Lowpegel ab ("polling") oder reagiert mit einem Interrupt auf eine High-Low-Flanke an dem Portpin (wenn dieser Interrupt-fähig ist, wie PD2 (= INT0) der CONTROL M32!). Wird ein solches Ereignis erkannt, kann der I2C-Master anschließend die Daten über den I2C-Bus einlesen.

Der PCF8574 setzt seinen Ausgang INT unter folgenden Bedingungen wieder zurück auf Highpegel (1) und reagiert damit auf erneute Pegeländerungen:

  • Die Eingangspegel der I/O-Ports wechseln wieder zum vorherigen Zustand
  • Es erfolgt ein I2C-Lese-Zugriff auf den Port
  • Es erfolgt ein I2C-Schreib-Zugriff auf den Port

RP6 CCPRO M128

Die Ausgabe eines Werts an den PCF8574 erfolgt in ähnlicher Weise auch mit CC (siehe auch weiter oben die identische Funktion void RP6_writeByte(byte adr, byte data) der RP6I2ClcdCC Library!).

Beispiel:

Thread_Lock(1);
I2C_Start();
I2C_Write(PCF8574_IO_ADR);
I2C_Write(outByte);
I2C_Stop();
Thread_Lock(0);

Auch das Einlesen der I/O-Ports gelingt mit CC.

Beispiel:

Thread_Lock(1);
I2C_Start();
I2C_Write(PCF8574_IO_ADR + 1);
inByte = I2C_Read_NACK();
I2C_Stop();
Thread_Lock(0);
Interrupt

Wie weiter oben für die Base und CONTROL M32 beschrieben, kann auch die CCPRO M128 den INT-Ausgang des PCF8574 auswerten, weil er über INT1 des XBUS (Pin 8) auch auf dieser Erweiterungsplatine verfügbar ist.

Die CCPRO M128 als I2C-Master kann das INT-Signal mit ihrem Portpin PE5 (= INT5) auswerten. Da dieser Portpin auch Interrupt-fähig ist, ist ein zeitnahes Einlesen der Daten des Portexpanders über den I2C-Bus möglich.

RP6 M256 WiFi

Die Nutzung der 8 I/O-Ports als Ein-/Ausgänge erfolgt mit der M256 WIFI genau so wie mit der RP6v2 Base und CONTROL M32, siehe RP6v2 Base und CONTROL M32!

Interrupt

Auch auf der M256 WIFI ist INT1 des XBUS (Pin 8) verfügbar und kann mit Portpin PJ3 (= PCI12) ausgewertet werden.


Phase 2

ADC-Demos

Hier wird beschrieben, wie die vier AD-Wandler-Kanäle des PCF8591 konfiguriert und ausgelesen werden. Der PCF8591 hat 8-Bit-ADCs, d.h. die Eingangsspannung wird in 256 Stufen (0..255) "gemessen".

RP6v2 Base und CONTROL M32

Die Demo "RP6Base_I2CMaster_02.c" aus den RP6v2 Examples zeigt, wie die 4 ADC-Eingänge ausgelesen und angezeigt werden können.

Beispiel:

#define PCF8591_ADC_ADR  0x90
uint8_t results[6], adc1, adc2, adc3, adc4;

I2CTWI_transmitByte(PCF8591_ADC_ADR, 0b01000100);

I2CTWI_readBytes(PCF8591_ADC_ADR, results, 5);

adc1 = results[1];
adc2 = results[2];
adc3 = results[3];
adc4 = results[4];

In den Variablen adc1..4 sind danach die Werte der vier AD-Wandler-Kanäle enthalten. Der I2C-Schreib-Befehl konfiguriert den PCF8591 so, dass der analoge Ausgang (Bit 6) und "Auto-Increment" (Bit 2) eingeschaltet wird. Damit kann man alle vier ADC-Kanäle nacheinander einlesen. Über weitere Optionen zur Konfigurierung des PCF8591 informiert das Datenblatt (Abschnitt 7.2 Control byte). Dort wird auch beschrieben, wie man einzelne AD-Wandler-Kanäle auslesen und wie man Differenzial-Eingänge konfigurieren kann.

RP6 CCPRO M128

Auch in CC lassen sich die vier ADC-Kanäle auslesen.

Beispiel:

byte readBuffer[6], i, adc1, adc2, adc3, adc4;

Thread_Lock(1);
I2C_Start();
I2C_Write(PCF8591_ADC_ADR);
I2C_Write(0x44); // 0x44 = 0b01000100
I2C_Stop();

I2C_Start();
I2C_Write(PCF8591_ADC_ADR + 1);
for(i = 0; i < 4; i++)
    readBuffer[i] = (I2C_Read_ACK());
readBuffer[i] = (I2C_Read_NACK());
I2C_Stop();
Thread_Lock(0);

adc1 = readBuffer[1];
adc2 = readBuffer[2];
adc3 = readBuffer[3];
adc4 = readBuffer[4];

RP6 M256 WiFi

Das Auslesen der 4 ADC-Eingänge erfolgt mit der M256 WIFI genau so wie mit der RP6v2 Base und CONTROL M32, siehe RP6v2 Base und CONTROL M32!

DAC-Demos

Hier wird beschrieben, wie man den DA-Wandler-Ausgang des PCF8591 nutzen kann. Durch Senden eines DAC-Werts (0..255) an den PCF8591 über den I2C-Bus gibt er am Ausgang AOUT (Pin 15) eine Spannung aus, die beim DAC-Wert 0 AGND (Pin 13) entspricht und bei 255 Vref (Pin 14). Liegt AGND an GND (JP5 geschlossen) und ist Vref gleich 5 V, kann man eine Spannung an AOUT von 0..5 V erzeugen. Bei einem DAC-Wert von 127 wird an AOUT also eine Spannung Vaout von ca. 2,5 V zu messen sein.

Formel für die Ausgangsspannung (AGND = GND, Vref = 5 V):

Vaout = DAC * 5 / 256 [V]

RP6v2 Base und CONTROL M32

So kann man einen DAC-Wert an den PCF8591 senden.

Beispiel:

#define PCF8591_ADC_ADR  0x90
uint8_t dac;

I2CTWI_transmit2Bytes(PCF8591_ADC_ADR, 0b01000000, dac);

RP6 CCPRO M128

Auch in CC geht das ähnlich.

Beispiel:

byte dac;

Thread_Lock(1);
I2C_Start();
I2C_Write(PCF8591_ADC_ADR);
I2C_Write(0x40); // 0x40 = 0b01000000
I2C_Write(dac);
I2C_Stop();
Thread_Lock(0);

RP6 M256 WiFi

Das Senden eines DAC-Wertes an den PCF8591 erfolgt mit der M256 WIFI genau so wie mit der RP6v2 Base und CONTROL M32, siehe RP6v2 Base und CONTROL M32!


Phase 3

EEPROM-Libraries

RP6v2 Base und CONTROL M32

Die RP6v2 I2C-EEPROM Library für die RP6v2 Base und CONTROL M32 gehört in den Ordner \RP6Lib\RP6common.

Die Library stellt für das I2C-EEPROM dieselben Befehle zur Verfügung, wie sie von der RP6Control Library für das auf der RP6 CONTROL M32 vorhandene SPI-EEPROM (IC2) bereit gestellt werden (siehe Anleitung zur RP6 CONTROL M32, S. 16, Kapitel 3.1.7. SPI Bus und SPI EEPROM!). Die Library kann sowohl mit der RP6v2 Base, als auch mit der RP6 CONTROL M32 (jeweils als I2C Master) eingesetzt werden.

Lediglich die Funktionsnamen ändern sich: Anstelle z.B. der Funktion SPI_EEPROM_readByte() der RP6Control Library heißt dieselbe Funktion der I2C-EEPROM Library I2C_EEPROM_readByte(). In allen Funktionsnamen wird also der Teil "SPI..." durch "I2C..." ersetzt.

Header

Datei RP6I2CeepTWI.h:

/* ****************************************************************************
 *                           _______________________
 *                           \| RP6  ROBOT SYSTEM |/
 *                            \_-_-_-_-_-_-_-_-_-_/         		 >>> COMMON
 * ----------------------------------------------------------------------------
 * ----------------------------- [c]2012 - Dirk -------------------------------
 * ****************************************************************************
 * File: RP6I2CeepTWI.h
 * Version: 1.0
 * Target: RP6 Base & Processor Expansion - ATMEGA32 @8.00 or 16.00MHz
 * Author(s): Dirk
 * ****************************************************************************
 * Description:
 * This is the RP6I2CeepTWI header file.
 * You have to include this file, if you want to use the library
 * RP6I2CeepTWI.c in your own projects.
 *
 * ****************************************************************************
 * THE CHANGELOG CAN BE FOUND AT THE END OF THIS FILE!
 * ****************************************************************************
 */

#ifndef RP6I2CEEPTWI_H
#define RP6I2CEEPTWI_H

/*****************************************************************************/
// Includes:

#include "RP6I2CeepTWIConfig.h"		// Configure the target system

// Select includes depending on RP6I2CeepTWIConfig.h:
#ifdef RP6BASE
	#include "RP6RobotBaseLib.h"	// The RP6 Robot Base Library.
#else
#ifdef RP6CONTROL
	#include "RP6ControlLib.h"		// The RP6 Control M32 Library.
#else
	#error DEFINE "RP6BASE" OR "RP6CONTROL" AS TARGET IN RP6I2CeepTWIConfig.h
#endif
#endif
#include "RP6I2CmasterTWI.h"		// Include the I2C-Bus Master Library

/*****************************************************************************/
// Functions:

uint8_t I2C_EEPROM_readByte(uint16_t memAddr);
void I2C_EEPROM_writeByte(uint16_t memAddr, uint8_t data);

void I2C_EEPROM_readBytes(uint16_t startAddr, uint8_t *buffer, uint8_t length);
void I2C_EEPROM_writeBytes(uint16_t startAddr, uint8_t *buffer, uint8_t length);

#endif

/******************************************************************************
 * Additional info
 * ****************************************************************************
 * Changelog:
 *
 *  ---> changes are documented in the file "RP6I2CeepTWI.c"
 *
 * ****************************************************************************
 */

/*****************************************************************************/
// EOF
Library

Datei RP6I2CeepTWI.c:

/* ****************************************************************************
 *                           _______________________
 *                           \| RP6  ROBOT SYSTEM |/
 *                            \_-_-_-_-_-_-_-_-_-_/         		 >>> COMMON
 * ----------------------------------------------------------------------------
 * ----------------------------- [c]2012 - Dirk -------------------------------
 * ****************************************************************************
 * File: RP6I2CeepTWI.c
 * Version: 1.0
 * Target: RP6 Base & Processor Expansion - ATMEGA32
 *         with LC-Display 16x2 chars (CONRAD 190911)
 *         [or Backlight Display 16x2 chars (CONRAD 191621)]
 *         and an external I2C-EEPROM (24LCXXX-P)
 *         connected to the RP6v2 I2C-Bus.
 * Author(s): Dirk
 * ****************************************************************************
 * Description:
 * This is my RP6v2 I2C-EEPROM Library. It contains functions for reading and
 * writing data from/to an I2C-EEPROM over the I2C-Bus. The I2C-EEPROM may be
 * built up on an RP6v2 experiment board (CONRAD 191537) as shown here:
 *     ---> http://www.rn-wissen.de/index.php/RP6v2_I2C-Portexpander <---
 *
 * The following EEPROM types may be used:
 *  EEPROM Size:  Chip              Pagesize
 *  -   32 kbit:  ST24LC32A            32
 *  -   64 kbit:  ST24LC64             32
 *  -  128 kbit:  ST24LC128            64
 *  -  256 kbit:  ST24LC256            64
 *  -  512 kbit:  ST24LC512           128
 *  - 1024 kbit:  AT24LC1024          256
 *
 * ****************************************************************************
 * THE CHANGELOG CAN BE FOUND AT THE END OF THIS FILE!
 * ****************************************************************************
 */

/*****************************************************************************/
// Includes:

#include "RP6I2CeepTWI.h"

/*****************************************************************************/
// Functions:

/**
 * Reads a single Byte from the external EEPROM.
 */
uint8_t I2C_EEPROM_readByte(uint16_t memAddr)
{
	uint8_t data;
	I2CTWI_transmit2Bytes(I2C_EEPROM_ADR, (memAddr >> 8), memAddr);
	data = I2CTWI_readByte(I2C_EEPROM_ADR);
	return data;
}

/**
 * Write a single data byte to the specified EEPROM address.
 */
void I2C_EEPROM_writeByte(uint16_t memAddr, uint8_t data)
{
	I2CTWI_transmit3Bytes(I2C_EEPROM_ADR, (memAddr >> 8), memAddr, data);
	mSleep(5);
}

/**
 * Reads "length" Bytes into the Buffer "buffer" from startAddr on.
 * You can read the complete EEPROM into a buffer at once - if it is large enough.
 * (But you only have 2KB SRAM on a MEGA32 ;) )
 * If "length" is higher than I2CTWI_BUFFER_REC_SIZE defined in RP6I2CmasterTWI.h,
 * you have to adapt I2CTWI_BUFFER_REC_SIZE to the highest used "length" value!
 */
void I2C_EEPROM_readBytes(uint16_t startAddr, uint8_t *buffer, uint8_t length)
{
	I2CTWI_transmit2Bytes(I2C_EEPROM_ADR, (startAddr >> 8), startAddr);
	I2CTWI_readBytes(I2C_EEPROM_ADR, &buffer[0], length);
}

/**
 * Write "length" Bytes from the Buffer to the EEPROM.
 * YOU CAN ONLY WRITE MAXIMAL [I2C_EEPROM_PAGESIZE] BYTES AT ONCE!!!
 * This is the Pagesize!
 * You can NOT cross a page boundary!
 * If (length + 2) is higher than I2CTWI_BUFFER_SIZE defined in RP6I2CmasterTWI.h,
 * you have to adapt I2CTWI_BUFFER_SIZE to the highest used (length + 2) value!
 */
void I2C_EEPROM_writeBytes(uint16_t startAddr, uint8_t *buffer, uint8_t length)
{
	uint8_t i, addrbuffer[length + 2];
	addrbuffer[0] = (startAddr >> 8);
	addrbuffer[1] = startAddr;
	for(i = 0; i < length; i++) {
		addrbuffer[i + 2] = buffer[i];
	}
	I2CTWI_transmitBytes(I2C_EEPROM_ADR, &addrbuffer[0], (length + 2));
	mSleep(5);
}

/******************************************************************************
 * Additional info
 * ****************************************************************************
 * Changelog:
 * - v. 1.0 (initial release) 12.06.2012 by Dirk
 *
 * ****************************************************************************
 */

/*****************************************************************************/
// EOF

RP6 CCPRO M128

Die RP6v2 I2C-EEPROM Library für die RP6 CCPRO M128 gehört in den Ordner \RP6CCLib.

Die Library stellt für das I2C-EEPROM dieselben Befehle zur Verfügung, wie sie von C-Control-Pro für das im ATmega128 des C-Control Pro Moduls vorhandene EEPROM (4 kB) bereit gestellt werden (siehe C-Control-Pro-Anleitung, S. 182, Kapitel 6.10 EEPROM!). Im Unterschied zu den EEPROM-Funktionen von C-Control-Pro können die Funktionen dieser Library auch auf die ersten 32 Bytes des I2C-EEPROMs zugreifen.

Lediglich die Funktionsnamen ändern sich: Anstelle z.B. der C-Control-Pro-Funktion EEPROM_Read() heißt dieselbe Funktion der I2C-EEPROM Library I2C_EEPROM_Read(). Allen Funktionsnamen wird also der Teil "I2C_..." vorangestellt.

Die I2C-EEPROM Library bietet zwei zusätzliche Funktionen:

  • void I2C_EEPROM_ReadBytes(word pos, byte buffer[], byte length)
  • void I2C_EEPROM_WriteBytes(word pos, byte buffer[], byte length)

Diese Funktionen ermöglichen das sequenzielle Lesen und Schreiben von mehreren Bytes gleichzeitig.

Datei RP6I2CeepCClib.cc:

/* ****************************************************************************
 *                           _______________________
 *                           \| RP6  ROBOT SYSTEM |/
 *                            \_-_-_-_-_-_-_-_-_-_/              >>> CCPRO M128
 * ----------------------------------------------------------------------------
 * ----------------------- [c]2012 - D. Ottensmeyer ---------------------------
 * ****************************************************************************
 * File: RP6I2CeepCClib.cc
 * Version: 1.0 - CompactC
 * Target: RP6 CCPRO M128 - C-Control PRO M128 @14.7456MHz
 *         mit optionalem LC-Display 16x2 Zeichen (CONRAD 190911)
 *         [oder Backlight Display 16x2 Zeichen (CONRAD 191621)]
 *         und ein externes I2C-EEPROM (24LCXXX-P), bestückt auf
 *         dem Sockel IC6 der CCPRO M128 oder auf andere Weise
 *         angeschlossen an den RP6v2 I2C-Bus.
 * Author(s): Dirk
 * ****************************************************************************
 * Beschreibung:
 * Dies ist meine RP6 CCPRO M128 I2C-EEPROM Bibliothek. Sie enthält Funktionen,
 * um Daten von einem I2C-EEPROM zu lesen und zum I2C-EEPROM über den I2C-Bus
 * zu senden.
 * Das I2C-EEPROM (24LCXXX-P) kann entweder auf der CCPRO M128 (IC6) bestückt
 * oder auf einer RP6v2 Experimentierplatine (CONRAD 191537) aufgebaut werden,
 * wie hier gezeigt wird:
 *     ---> http://www.rn-wissen.de/index.php/RP6v2_I2C-Portexpander <---
 *
 * Die folgenden EEPROM Typen können genutzt werden:
 *  EEPROM Size:  Chip              Pagesize
 *  -   32 kbit:  ST24LC32A            32
 *  -   64 kbit:  ST24LC64             32
 *  -  128 kbit:  ST24LC128            64
 *  -  256 kbit:  ST24LC256            64
 *  -  512 kbit:  ST24LC512           128
 *  - 1024 kbit:  AT24LC1024          256
 *
 * ****************************************************************************
 * CHANGELOG FINDEN SIE AM ENDE DIESER DATEI!
 * ****************************************************************************
 */

 // Alles nur EINMAL einbinden!
#ifndef __RP6I2CEEPCCLIB__
#define __RP6I2CEEPCCLIB__


/******************************************************************************/
// I2C-EEPROM:

// Array zur Float-Byte Umwandlung:
byte fb[4];

// Definiere die I2C-EEPROM Speicherkapazität [kbit] hier:
#define I2C_EEPROM_KBIT   32		// 24LC32-P
//#define I2C_EEPROM_KBIT   64		// 24LC64-P
//#define I2C_EEPROM_KBIT  128		// 24LC128-P
//#define I2C_EEPROM_KBIT  256		// 24LC256-P
//#define I2C_EEPROM_KBIT  512		// 24LC512-P
//#define I2C_EEPROM_KBIT 1024		// 24LC1024-P

// Definiere die I2C-EEPROM Seitengröße [byte] hier:
// ACHTUNG: Die Seitengröße muss zum oben definierten EEPROM Typ passen!
#define I2C_EEPROM_PAGESIZE  32		// EEPROM 32 or 64 kbit
//#define I2C_EEPROM_PAGESIZE  64		// EEPROM 128 or 256 kbit
//#define I2C_EEPROM_PAGESIZE 128		// EEPROM 512 kbit
//#define I2C_EEPROM_PAGESIZE 256		// EEPROM 1024 kbit

// ----------------------------------------------------------------------------
// Funktionen:

/**
 * Liest ein einzelnes byte vom I2C-EEPROM.
 */
byte I2C_EEPROM_Read(word pos)
{
    byte data;
    Thread_Lock(1);
    I2C_Start();
    I2C_Write(I2C_EEPROM_ADR);
    I2C_Write(pos >> 8);
    I2C_Write(pos);
    I2C_Start();
    I2C_Write(I2C_EEPROM_ADR + 1);
    data = I2C_Read_NACK();
    I2C_Stop();
    Thread_Lock(0);
    return data;
}

/**
 * Liest ein word (2 bytes) vom I2C-EEPROM.
 */
word I2C_EEPROM_ReadWord(word pos)
{
    word data;
    Thread_Lock(1);
    I2C_Start();
    I2C_Write(I2C_EEPROM_ADR);
    I2C_Write(pos >> 8);
    I2C_Write(pos);
    I2C_Start();
    I2C_Write(I2C_EEPROM_ADR + 1);
    data = I2C_Read_ACK();
    data = data << 8;
    data = data | (I2C_Read_NACK());
    I2C_Stop();
    Thread_Lock(0);
    return data;
}

/**
 * Wandelt ein byte Array in eine float Variable um.
 */
float byte2float(float f[])
{
    return f[0];
}

/**
 * Liest einen Fließkommawert (4 bytes) vom I2C-EEPROM.
 */
float I2C_EEPROM_ReadFloat(word pos)
{
    Thread_Lock(1);
    I2C_Start();
    I2C_Write(I2C_EEPROM_ADR);
    I2C_Write(pos >> 8);
    I2C_Write(pos);
    I2C_Start();
    I2C_Write(I2C_EEPROM_ADR + 1);
    fb[3] = I2C_Read_ACK();
    fb[2] = I2C_Read_ACK();
    fb[1] = I2C_Read_ACK();
    fb[0] = I2C_Read_NACK();
    I2C_Stop();
    Thread_Lock(0);
    return (byte2float(fb));
}

/**
 * Schreibt ein einzelnes byte an die angegebene EEPROM Adresse.
 */
void I2C_EEPROM_Write(word pos, byte val)
{
    Thread_Lock(1);
    I2C_Start();
    I2C_Write(I2C_EEPROM_ADR);
    I2C_Write(pos >> 8);
    I2C_Write(pos);
    I2C_Write(val);
    I2C_Stop();
    Thread_Lock(0);
    AbsDelay(5);
}

/**
 * Schreibt ein word (2 bytes) an die angegebene EEPROM Adresse.
 * Man darf die Seitengrenze nicht überschreiten!
 */
void I2C_EEPROM_WriteWord(word pos, word val)
{
    Thread_Lock(1);
    I2C_Start();
    I2C_Write(I2C_EEPROM_ADR);
    I2C_Write(pos >> 8);
    I2C_Write(pos);
    I2C_Write(val >> 8);
    I2C_Write(val);
    I2C_Stop();
    Thread_Lock(0);
    AbsDelay(5);
}

/**
 * Wandelt eine float Variable in ein byte Array um.
 */
void float2byte(float flt, float f[])
{
    f[0] = flt;
}

/**
 * Schreibt einen Fließkommawert (4 bytes) an die angegebene EEPROM Adresse.
 * Man darf die Seitengrenze nicht überschreiten!
 */
void I2C_EEPROM_WriteFloat(word pos, float val)
{
    float2byte(val, fb);
    Thread_Lock(1);
    I2C_Start();
    I2C_Write(I2C_EEPROM_ADR);
    I2C_Write(pos >> 8);
    I2C_Write(pos);
    I2C_Write(fb[3]);
    I2C_Write(fb[2]);
    I2C_Write(fb[1]);
    I2C_Write(fb[0]);
    I2C_Stop();
    Thread_Lock(0);
    AbsDelay(5);
}

// ----------------------------------------------------------------------------

/**
 * Liest "length" bytes in den Puffer "buffer" beginnend bei "pos".
 * Man kann das komplette EEPROM auf einmal in einen Puffer auslesen -
 * wenn er groß genug ist.
 * (Aber es gibt nur 4kB SRAM auf einem MEGA128 ;) )
 */
void I2C_EEPROM_ReadBytes(word pos, byte buffer[], byte length)
{
    byte i;
    Thread_Lock(1);
    I2C_Start();
    I2C_Write(I2C_EEPROM_ADR);
    I2C_Write(pos >> 8);
    I2C_Write(pos);
    I2C_Start();
    I2C_Write(I2C_EEPROM_ADR + 1);
    for (i = 0; i < (length - 1); i++)
        buffer[i] = I2C_Read_ACK();
    buffer[i] = I2C_Read_NACK();
    I2C_Stop();
    Thread_Lock(0);
}

/**
 * Schreibt "length" bytes aus dem Puffer "buffer" in das EEPROM.
 * MAN KANN MAXIMAL [I2C_EEPROM_PAGESIZE] BYTES AUF EINMAL SCHREIBEN!!!
 * Das ist die Seitengröße (Pagesize)!
 * Man darf die Seitengrenze nicht überschreiten!
 */
void I2C_EEPROM_WriteBytes(word pos, byte buffer[], byte length)
{
    byte i;
    Thread_Lock(1);
    I2C_Start();
    I2C_Write(I2C_EEPROM_ADR);
    I2C_Write(pos >> 8);
    I2C_Write(pos);
    for (i = 0; i < length; i++)
        I2C_Write(buffer[i]);
    I2C_Stop();
    Thread_Lock(0);
    AbsDelay(5);
}

#endif

/******************************************************************************
 * Info
 * ****************************************************************************
 * Changelog:
 * - v. 1.0 (initial release) 15.06.2012 by Dirk
 *
 * ****************************************************************************
 */

/*****************************************************************************/
// EOF

In dieser Library wird von einem 32 kbit-EEPROM ausgegangen. Wenn ein anderes I2C-EEPROM verwendet wird, müssen die Definitionen von I2C_EEPROM_KBIT und I2C_EEPROM_PAGESIZE angepasst werden.

RP6 M256 WiFi

Die RP6v2 I2C-EEPROM Library für die RP6v2 M256 WIFI gehört in den Ordner \RP6Lib\RP6control_M256WIFI.

Die Library stellt für das I2C-EEPROM die selben Befehle zur Verfügung, wie sie auch von der I2C-EEPROM Library für die RP6v2 Base und CONTROL M32 (siehe RP6v2 Base und CONTROL M32!) bereitgestellt werden.

Header

Datei RP6M256I2CeepTWI.h:

/* ****************************************************************************
 *                           _______________________
 *                           \| RP6  ROBOT SYSTEM |/
 *                            \_-_-_-_-_-_-_-_-_-_/           >>> RP6 M256 WIFI
 * ----------------------------------------------------------------------------
 * ----------------------------- [c]2012 - Dirk -------------------------------
 * ****************************************************************************
 * File: RP6M256I2CeepTWI.h
 * Version: 1.0
 * Target: RP6 CONTROL M256 WIFI - ATMEGA2560 @16.00MHz
 * Author(s): Dirk
 * ****************************************************************************
 * Description:
 * This is the RP6M256I2CeepTWI header file.
 * You have to include this file, if you want to use the library
 * RP6M256I2CeepTWI.c in your own projects.
 *
 * ****************************************************************************
 * THE CHANGELOG CAN BE FOUND AT THE END OF THIS FILE!
 * ****************************************************************************
 */

#ifndef RP6M256I2CEEPTWI_H
#define RP6M256I2CEEPTWI_H

/*****************************************************************************/
// Includes:

#include "RP6M256Lib.h"				// The RP6 M256 Library.
#include "RP6I2CmasterTWI.h"		// Include the I2C-Bus Master Library

/*****************************************************************************/
// Defines:

// Define the I2C-EEPROM (24LCXXX-P) I2C address here:
#define I2C_EEPROM_ADR  0xA0

// Define the I2C-EEPROM storage capacity [kbit] here:
#define I2C_EEPROM_KBIT   32		// 24LC32-P
//#define I2C_EEPROM_KBIT   64		// 24LC64-P
//#define I2C_EEPROM_KBIT  128		// 24LC128-P
//#define I2C_EEPROM_KBIT  256		// 24LC256-P
//#define I2C_EEPROM_KBIT  512		// 24LC512-P
//#define I2C_EEPROM_KBIT 1024		// 24LC1024-P

// Define the I2C-EEPROM pagesize [byte] here:
// ATTENTION: The pagesize must fit to the EEPROM type defined above!
#define I2C_EEPROM_PAGESIZE  32		// EEPROM 32 or 64 kbit
//#define I2C_EEPROM_PAGESIZE  64		// EEPROM 128 or 256 kbit
//#define I2C_EEPROM_PAGESIZE 128		// EEPROM 512 kbit
//#define I2C_EEPROM_PAGESIZE 256		// EEPROM 1024 kbit

/*****************************************************************************/
// Functions:

uint8_t I2C_EEPROM_readByte(uint16_t memAddr);
void I2C_EEPROM_writeByte(uint16_t memAddr, uint8_t data);

void I2C_EEPROM_readBytes(uint16_t startAddr, uint8_t *buffer, uint8_t length);
void I2C_EEPROM_writeBytes(uint16_t startAddr, uint8_t *buffer, uint8_t length);

#endif

/******************************************************************************
 * Additional info
 * ****************************************************************************
 * Changelog:
 *
 *  ---> changes are documented in the file "RP6M256I2CeepTWI.c"
 *
 * ****************************************************************************
 */

/*****************************************************************************/
// EOF
Library

Datei RP6M256I2CeepTWI.c:

/* ****************************************************************************
 *                           _______________________
 *                           \| RP6  ROBOT SYSTEM |/
 *                            \_-_-_-_-_-_-_-_-_-_/           >>> RP6 M256 WIFI
 * ----------------------------------------------------------------------------
 * ----------------------------- [c]2012 - Dirk -------------------------------
 * ****************************************************************************
 * File: RP6M256I2CeepTWI.c
 * Version: 1.0
 * Target: RP6 CONTROL M256 WIFI - ATMEGA2560 @16.00MHz
 *         with LC-Display 16x2 chars (CONRAD 190911)
 *         [or Backlight Display 16x2 chars (CONRAD 191621)]
 *         and an external I2C-EEPROM (24LCXXX-P)
 *         connected to the RP6v2 I2C-Bus.
 * Author(s): Dirk
 * ****************************************************************************
 * Description:
 * This is my M256 I2C-EEPROM Library. It contains functions for reading and
 * writing data from/to an I2C-EEPROM over the I2C-Bus. The I2C-EEPROM may be
 * built up on an RP6v2 experiment board (CONRAD 191537) as shown here:
 *     ---> http://www.rn-wissen.de/index.php/RP6v2_I2C-Portexpander <---
 *
 * The following EEPROM types may be used:
 *  EEPROM Size:  Chip              Pagesize
 *  -   32 kbit:  ST24LC32A            32
 *  -   64 kbit:  ST24LC64             32
 *  -  128 kbit:  ST24LC128            64
 *  -  256 kbit:  ST24LC256            64
 *  -  512 kbit:  ST24LC512           128
 *  - 1024 kbit:  AT24LC1024          256
 *
 * ****************************************************************************
 * THE CHANGELOG CAN BE FOUND AT THE END OF THIS FILE!
 * ****************************************************************************
 */

/*****************************************************************************/
// Includes:

#include "RP6M256I2CeepTWI.h"

/*****************************************************************************/
// Functions:

/**
 * Reads a single Byte from the external EEPROM.
 */
uint8_t I2C_EEPROM_readByte(uint16_t memAddr)
{
	uint8_t data;
	I2CTWI_transmit2Bytes(I2C_EEPROM_ADR, (memAddr >> 8), memAddr);
	data = I2CTWI_readByte(I2C_EEPROM_ADR);
	return data;
}

/**
 * Write a single data byte to the specified EEPROM address.
 */
void I2C_EEPROM_writeByte(uint16_t memAddr, uint8_t data)
{
	I2CTWI_transmit3Bytes(I2C_EEPROM_ADR, (memAddr >> 8), memAddr, data);
	mSleep(5);
}

/**
 * Reads "length" Bytes into the Buffer "buffer" from startAddr on.
 * You can read the complete EEPROM into a buffer at once - if it is large enough.
 * (But you only have 2KB SRAM on a MEGA32 ;) )
 * If "length" is higher than I2CTWI_BUFFER_REC_SIZE defined in RP6I2CmasterTWI.h,
 * you have to adapt I2CTWI_BUFFER_REC_SIZE to the highest used "length" value!
 */
void I2C_EEPROM_readBytes(uint16_t startAddr, uint8_t *buffer, uint8_t length)
{
	I2CTWI_transmit2Bytes(I2C_EEPROM_ADR, (startAddr >> 8), startAddr);
	I2CTWI_readBytes(I2C_EEPROM_ADR, &buffer[0], length);
}

/**
 * Write "length" Bytes from the Buffer to the EEPROM.
 * YOU CAN ONLY WRITE MAXIMAL [I2C_EEPROM_PAGESIZE] BYTES AT ONCE!!!
 * This is the Pagesize!
 * You can NOT cross a page boundary!
 * If (length + 2) is higher than I2CTWI_BUFFER_SIZE defined in RP6I2CmasterTWI.h,
 * you have to adapt I2CTWI_BUFFER_SIZE to the highest used (length + 2) value!
 */
void I2C_EEPROM_writeBytes(uint16_t startAddr, uint8_t *buffer, uint8_t length)
{
	uint8_t i, addrbuffer[length + 2];
	addrbuffer[0] = (startAddr >> 8);
	addrbuffer[1] = startAddr;
	for(i = 0; i < length; i++) {
		addrbuffer[i + 2] = buffer[i];
	}
	I2CTWI_transmitBytes(I2C_EEPROM_ADR, &addrbuffer[0], (length + 2));
	mSleep(5);
}

/******************************************************************************
 * Additional info
 * ****************************************************************************
 * Changelog:
 * - v. 1.0 (initial release) 16.08.2012 by Dirk
 *
 * ****************************************************************************
 */

/*****************************************************************************/
// EOF

In dieser Library wird von einem 32 kbit-EEPROM ausgegangen. Wenn ein anderes I2C-EEPROM verwendet wird, müssen die Definitionen von I2C_EEPROM_KBIT und I2C_EEPROM_PAGESIZE angepasst werden.

EEPROM-Demos

Die folgenden I2C-EEPROM-Demoprogramme sind eine Anpassung des "Example_04_ExternalEEPROM" Beispiels (RP6Control_04_ExternalEEPROM.c) für die RP6 CONTROL M32. Die Demos zeigen, wie man Daten von und zum I2C-EEPROM über den I2C-Bus lesen und schreiben kann. Die gelesenen Daten werden dann über die serielle Schnittstelle ausgegeben.

RP6v2 Base und CONTROL M32

Diese Demo ist für die RP6 CONTROL M32 geeignet, eine Anpassung an die RP6v2 Base dürfte aber einfach sein.

Config

Die Konfigurations-Datei der RP6v2 I2C-EEPROM Library gehört in den jeweiligen Programmordner.

Datei RP6I2CeepTWIConfig.h:

/**
 * Settings for the RP6I2CeepTWI Library
 */

#ifndef RP6I2CEEPCONFIG_H
#define RP6I2CEEPCONFIG_H


/**
 * Define the target here:
 * (Use only ONE of them! Never both!)
 */
//#define RP6BASE
#define RP6CONTROL

/**
 * Define the I2C-EEPROM (24LCXXX-P) I2C address here:
 */
#define I2C_EEPROM_ADR  0xA0

/**
 * Define the I2C-EEPROM storage capacity [kbit] here:
 */
#define I2C_EEPROM_KBIT   32		// 24LC32-P
//#define I2C_EEPROM_KBIT   64		// 24LC64-P
//#define I2C_EEPROM_KBIT  128		// 24LC128-P
//#define I2C_EEPROM_KBIT  256		// 24LC256-P
//#define I2C_EEPROM_KBIT  512		// 24LC512-P
//#define I2C_EEPROM_KBIT 1024		// 24LC1024-P

/**
 * Define the I2C-EEPROM pagesize [byte] here:
 * ATTENTION: The pagesize must fit to the EEPROM type defined above!
 */
#define I2C_EEPROM_PAGESIZE  32		// EEPROM 32 or 64 kbit
//#define I2C_EEPROM_PAGESIZE  64		// EEPROM 128 or 256 kbit
//#define I2C_EEPROM_PAGESIZE 128		// EEPROM 512 kbit
//#define I2C_EEPROM_PAGESIZE 256		// EEPROM 1024 kbit


#endif

In dieser Config-Datei wird von einem 32 kbit-EEPROM ausgegangen. Wenn ein anderes I2C-EEPROM verwendet wird, müssen die Definitionen von I2C_EEPROM_KBIT und I2C_EEPROM_PAGESIZE angepasst werden.

Demo

makefile:

...
TARGET = RP6_I2CeepTWI
...
SRC += $(RP6_LIB_PATH)/RP6control/RP6ControlLib.c
SRC += $(RP6_LIB_PATH)/RP6common/RP6uart.c
SRC += $(RP6_LIB_PATH)/RP6common/RP6I2CmasterTWI.c
SRC += $(RP6_LIB_PATH)/RP6common/RP6I2CeepTWI.c
...

Datei RP6_I2CeepTWI.c:

/*
 * ****************************************************************************
 * RP6 ROBOT SYSTEM - RP6 CONTROL M32 Examples
 * ****************************************************************************
 * Example: I2C-EEPROM and Serial Interface Example
 * Author(s): Dirk
 * ****************************************************************************
 * Description:
 * This program writes and reads data to/from an external I2C-EEPROM.
 * It writes the read data to the PC with the serial interface
 * and shows a running light at the end.
 *
 * The following EEPROM types may be used:
 *  EEPROM Size:  Chip              Pagesize
 *  -   32 kbit:  ST24LC32A            32
 *  -   64 kbit:  ST24LC64             32
 *  -  128 kbit:  ST24LC128            64
 *  -  256 kbit:  ST24LC256            64
 *  -  512 kbit:  ST24LC512           128
 *  - 1024 kbit:  AT24LC1024          256
 *
 * An external I2C-EEPROM can be used for Datalogging or as program
 * memory for Bytecode Interpreters (Java VMs for example NanoVM).
 *
 * ############################################################################
 * The Robot does NOT move in this example! You can simply put it on a table
 * next to your PC and you should connect it to the PC via the USB Interface!
 * ############################################################################
 * ****************************************************************************
 */

/*****************************************************************************/
// Includes:

#include "RP6ControlLib.h" 		// The RP6 Control Library.
								// Always needs to be included!
#include "RP6I2CmasterTWI.h"	// Include the I2C-Bus Master Library

#include "RP6I2CeepTWI.h"		// The I2C-EEPROM Library.

/*****************************************************************************/
// I2C

/**
 * This function gets called automatically if there was an I2C Error like
 * the slave sent a "not acknowledge" (NACK, error codes e.g. 0x20 or 0x30).
 * The most common mistakes are:
 *   - using the wrong address for the slave
 *   - slave not active or not connected to the I2C-Bus
 *   - too fast requests for a slower slave
 * Be sure to check this if you get I2C errors!
 */
void I2C_transmissionError(uint8_t errorState)
{
	writeString_P("\nI2C ERROR - TWI STATE: 0x");
	writeInteger(errorState, HEX);
	writeChar('\n');
}

/*****************************************************************************/

// Our read and write Buffers:
uint8_t write_buffer[I2C_EEPROM_PAGESIZE];
#define DOUBLE_PAGESIZE (I2C_EEPROM_PAGESIZE * 2)
uint8_t read_buffer[DOUBLE_PAGESIZE];

/*****************************************************************************/
// Main function - The program starts here:

int main(void)
{
	initRP6Control(); // Always call this first! The Processor will not work
					  // correctly otherwise.

	I2CTWI_initMaster(100); // Initialize the TWI Module for Master operation
							// with 100kHz SCL Frequency

	// Register the event handlers:
	I2CTWI_setTransmissionErrorHandler(I2C_transmissionError);

	// ---------------------------------------
	// Write messages to the Serial Interface
	// (here it is a RP6v2 text logo):
	writeString_P("\n\n   _______________________\n");
	writeString_P("   \\| RP6  ROBOT SYSTEM |/\n");
	writeString_P("    \\_-_-_-_-_-_-_-_-_-_/\n\n");

	writeString_P("RP6 Control M32. I2C-EEPROM.\n");
	writeString_P("Read/Write! Example Program!\n");
	writeString_P("\nLet's go! :)\n");

	setLEDs(0b1111);
	mSleep(500);
	setLEDs(0b0000);

	mSleep(1000);

	writeString_P("\nReading memory before write operation:\n");

	// We read some bytes of the EEPROM to show what the EEPROM Values
	// were before we wrote any data to them:
	I2C_EEPROM_readBytes(0, &read_buffer[0], I2CTWI_BUFFER_REC_SIZE);


	// And now we output the read data on the serial interface:
	uint8_t cnt;
	for(cnt = 0; cnt < I2CTWI_BUFFER_REC_SIZE; cnt++)
	{
		writeInteger(read_buffer[cnt], DEC);
		writeChar(',');
	}
	writeString_P("\nDone!\n");


	writeString_P("\n\nWriting EEPROM memory:\n");

	// Prepare buffer with some test data and output
	// this on the serial interface:
	for(cnt = 0; cnt < I2CTWI_BUFFER_SIZE; cnt++)
	{
		write_buffer[cnt] = cnt;
		writeInteger(write_buffer[cnt], DEC);
		writeChar(',');
	}

	// Write the Buffer to the EEPROM:
	I2C_EEPROM_writeBytes(0, &write_buffer[0], I2CTWI_BUFFER_SIZE);
	// If you use a 256 kbit EEPROM (ST24LC256, 24LC256)
	// you can only write 64 Bytes at once. 64 Bytes
	// is the page size. You can not write across the
	// page boundaries in a single write - then you need to
	// split the writes up.
	// s. EEPROM Datasheet for more details on this!

	writeString_P("\nDone!\n\nReading written memory:\n");

	// To verify that we have really written the data correctly,
	// we read the area of the memory:
	I2C_EEPROM_readBytes(0, &read_buffer[0], I2CTWI_BUFFER_REC_SIZE);
	// (You can read as many databytes from the EEPROM as you
	// like - there is no need to observe page boundaries like it
	// is neccessary for write operations...)

	// And now we output the read data on the serial interface:
	for(cnt = 0; cnt < I2CTWI_BUFFER_REC_SIZE; cnt++)
	{
		writeInteger(read_buffer[cnt], DEC);
		writeChar(',');
	}
	writeString_P("\nDone!\n");

	// -------------------------------------------

	// We can also write one single byte:
	writeString_P("\nWriting 128 to byte with address 4:\n");
	I2C_EEPROM_writeByte(4, 128);
	writeString_P("Done!\n");

	// And we can read single bytes directly - step by step
	// with the function I2C_EEPROM_readByte:

	writeString_P("\nReading written memory - step by step:\n");
	for(cnt = 0; cnt < (DOUBLE_PAGESIZE - 1); cnt++)
	{
		writeInteger(I2C_EEPROM_readByte(cnt), DEC);
		writeChar(',');
	}
	writeString_P("\nDone!\n");
/*
	// Clear the first 2 used pages of the EEPROM after the test:
	writeString_P("\nClearing the 1st 2 EEPROM pages - step by step:\n");
	for(cnt = 0; cnt < DOUBLE_PAGESIZE; cnt++) {
		I2C_EEPROM_writeByte(cnt, 255);
	}
	writeString_P("Done!\n");
*/
	// Play a sound to indicate that we finished our small test:
	sound(150, 20, 64);
	sound(150, 40, 0);
	writeString_P("\nEEPROM TEST\n");
	writeString_P("DONE!\n");
	// Now we just show a running light...
	startStopwatch1();

	uint8_t runLEDs = 1;
	uint8_t dir = 0;

	while(true)
	{
		if (getStopwatch1() > 100) {
			setLEDs(runLEDs);
			if (dir == 0)
				runLEDs <<= 1;
			else
				runLEDs >>= 1;
			if (runLEDs > 7)
				dir = 1;
			else if (runLEDs < 2)
				dir = 0;
			setStopwatch1(0);
		}
	}
	return 0;
}

RP6 CCPRO M128

Datei RP6_I2Ceep.cc:

/*******************************************************************************
 * RP6 C-Control PRO M128 Erweiterungsmodul
 * ----------------------------------------------------------------------------
 * I2C-EEPROM und Serielle Schnittstelle Beispielprogramm
 * ----------------------------------------------------------------------------
 * Dieses Programm schreibt und liest Daten in/aus einem externen I2C-EEPROM.
 * Es sendet die gelesenen Daten zum PC über die Serielle Schnittstelle
 * und zeigt am Ende ein Lauflicht.
 *
 * Die folgenden EEPROM Typen können genutzt werden:
 *  EEPROM Size:  Chip              Pagesize
 *  -   32 kbit:  ST24LC32A            32
 *  -   64 kbit:  ST24LC64             32
 *  -  128 kbit:  ST24LC128            64
 *  -  256 kbit:  ST24LC256            64
 *  -  512 kbit:  ST24LC512           128
 *  - 1024 kbit:  AT24LC1024          256
 *
 * Ein externes I2C-EEPROM kann zum Datalogging oder als Programmspeicher
 * für Bytecode Interpreter (Java VMs zum Beispiel NanoVM) dienen.
 *
 * Hinweis:
 * Für allgemeine Programmierhinweise zur CCPRO schauen Sie sich bitte die
 * CCPRO Dokumentation und die zugehörigen Beispielprogramme an!
 * Es sei auch nochmals darauf hingewiesen, dass die normalen Beispielprogramme
 * für die CCPRO nur zum Teil direkt auf dem RP6-CCPRO Modul laufen.
 * Die Anschlussbelegung ist natürlich komplett anders als auf dem
 * C-Control Application Board. Auch die LCD Ansteuerung ist leicht anders,
 * da hier noch zusätzliche LEDs mit an dem Schieberegister angeschlossen sind.
 * --> Die C-Control Beispielprogramme müssen ein klein wenig angepasst
 * werden bevor sie auf diesem Modul laufen können!
 *
 * *****************************************************************************
 * Der Roboter bewegt sich in diesem Beispielprogramm NICHT und kann
 * am Rechner angeschlossen bleiben!
 ******************************************************************************/

// WICHTIG: Immer die RP6CCLib mit einbinden:
#include "../../RP6CCLib/RP6CCLib.cc"

// I2C Bus Adresse des 24LCXXX-P:
#define I2C_EEPROM_ADR 0xA0

// Die neue RP6I2CeepCCLib einbinden:
#include "../../RP6CCLib/RP6I2CeepCClib.cc"

int irqcnt;                                 // globale Variablendeklaration
byte cnt1;

#define DOUBLE_PAGESIZE (I2C_EEPROM_PAGESIZE * 2)
byte read_buffer[DOUBLE_PAGESIZE];
byte write_buffer[DOUBLE_PAGESIZE];

/******************************************************************************/

/**
 * Sendet einen Float-Wert über UART0.
 */
#define printFloat(__FLT__, __DECP__) {Str_WriteFloat((__FLT__),(__DECP__),__tmp_txt__,0);\
 Serial_WriteText(0,__tmp_txt__);}

/******************************************************************************/
void main(void)
{
    // WICHTIG! Immer als erstes aufrufen:
    RP6_CCPRO_Init(); // Auf Startsignal warten, LCD und andere Dinge initialisieren !

    // Immer aufrufen, bevor das LCD benutzt wird:
    RP6_initLCD(); // Das LCD initialisieren

    Irq_SetVect(INT_TIM2COMP, INT_10ms);    // ISR definieren
                                            // Timer2: 10ms Interrupt

    // ------------------------------------------------------

    // Text über serielle Schnittstelle ausgeben:
    newline(); // Neue Zeile
    println("   ________________________");
    println("   \\| RP6  ROBOT SYSTEM |/");
    println("    \\_-_-_-_-_-_-_-_-_-_/ ");
    newline();
    println("RP6 CCPRO M128. I2C-EEPROM.");
    println("Schreib-Lese-Beispielprogramm!");
    newline();
    println("Let's go!");

    // 0,5 Sekunden Pause:
    AbsDelay(500);

    // Zwei Zeilen Text mit dem LCD anzeigen:
    showScreenLCD("################", "################");
    AbsDelay(1500);
    showScreenLCD(" RP6 CCPRO M128 ", "<  I2C-EEPROM  >");
    AbsDelay(2500);
    showScreenLCD("Schreib-Lese-", "Beispielprogramm");
    AbsDelay(2500);
    clearLCD(); // Lösche die ganze LCD Anzeige

    // ------------------------------------------------------

    newline();
    println("Lese den Speicher VOR dem Schreib-Lese-Test:");
    I2C_EEPROM_ReadBytes(0, read_buffer, (DOUBLE_PAGESIZE - 1));

    byte cnt;
    for(cnt = 0; cnt < (DOUBLE_PAGESIZE - 1); cnt++)
    {
        printInteger(read_buffer[cnt]);
        print(",");
    }
    newline();
    println("Fertig!");

    newline();
    newline();
    println("Schreibe in den EEPROM Speicher:");

    for(cnt = 0; cnt < I2C_EEPROM_PAGESIZE; cnt++)
    {
        write_buffer[cnt] = cnt;
        printInteger(write_buffer[cnt]);
        print(",");
    }

    I2C_EEPROM_WriteBytes(0, write_buffer, I2C_EEPROM_PAGESIZE);

    newline();
    println("Fertig!");
    newline();
    println("Lese die geschriebenen Daten:")

    I2C_EEPROM_ReadBytes(0, read_buffer, I2C_EEPROM_PAGESIZE);

    for(cnt = 0; cnt < I2C_EEPROM_PAGESIZE; cnt++)
    {
        printInteger(read_buffer[cnt]);
        print(",");
    }
    newline();
    println("Fertig!");

    newline();
    println("Schreibe 128 an die Speicher-Adresse 1:");
    println("Schreibe 12847 an die Speicher-Adresse 4:");
    println("Schreibe 12.8479 an die Speicher-Adresse 8:");
    I2C_EEPROM_Write(1, 128);
    I2C_EEPROM_WriteWord(4, 12847);
    I2C_EEPROM_WriteFloat(8, 12.8479);
    println("Fertig!");

    newline();
    println("Lese die geschriebenen Daten - Schritt für Schritt:");
    for(cnt = 0; cnt < (DOUBLE_PAGESIZE - 1); cnt++)
    {
        printInteger(I2C_EEPROM_Read(cnt));
        print(",");
    }
    newline();
    print("Lese das word (12847) von Speicher-Adresse 4: ");
    printInteger(I2C_EEPROM_ReadWord(4));
    newline();
    print("Lese die float (12.8479) von Speicher-Adresse 8: ");
    printFloat(I2C_EEPROM_ReadFloat(8), 4);
    newline();
    println("Fertig!");
/*
    // Löschen der ersten 2 benutzten Seiten des EEPROMs nach dem Test:
    newline();
    println("Lösche die ersten 2 EEPROM Seiten - Schritt für Schritt:");
    for(cnt = 0; cnt < DOUBLE_PAGESIZE; cnt++) {
        I2C_EEPROM_Write(cnt, 255);
    }
    println("Fertig!");
*/
    beep(389, 20, 64);
    beep(389, 40, 0);
    newline();
    println("EEPROM TEST");
    println("ENDE!");

    // Zum Schluß noch ein Lauflicht...
    byte runLEDs;
    byte dir;
    runLEDs = 1;
    dir = 0;

    while(1)
    {
        if (cnt1 > 10) { // 100ms
            setLEDs(runLEDs);
            if (dir == 0)
                runLEDs = runLEDs << 1;
            else
                runLEDs = runLEDs >> 1;
            if (runLEDs > 15)
                dir = 1;
            else if (runLEDs < 2)
                dir = 0;
            cnt1 = 0;
        }
    }
}

//------------------------------------------------------------------------------
// Interrupt Routine
//
void INT_10ms(void)
{
    cnt1++;                                 // Zähler für das Lauflicht

    irqcnt = Irq_GetCount(INT_TIM2COMP);    // Interrupt Request Counter
}

//------------------------------------------------------------------------------

RP6 M256 WiFi

makefile:

...
TARGET = RP6M256_I2CeepTWI
...
SRC += $(RP6_LIB_PATH)/RP6common/RP6I2CmasterTWI.c
SRC += $(RP6_LIB_PATH)/RP6control_M256_WIFI/RP6M256Lib.c
SRC += $(RP6_LIB_PATH)/RP6control_M256_WIFI/RP6M256uart.c
SRC += $(RP6_LIB_PATH)/RP6control_M256_WIFI/RP6M256_WIFIlib.c
SRC += $(RP6_LIB_PATH)/RP6control_M256_WIFI/sdc/sd_raw.c
SRC += $(RP6_LIB_PATH)/RP6control_M256_WIFI/sdc/fat.c
SRC += $(RP6_LIB_PATH)/RP6control_M256_WIFI/sdc/partition.c
SRC += $(RP6_LIB_PATH)/RP6control_M256_WIFI/sdc/byteordering.c
SRC += $(RP6_LIB_PATH)/RP6control_M256_WIFI/RP6M256I2CeepTWI.c
...

Datei RP6M256_I2CeepTWI.c:

/*
 * ****************************************************************************
 * RP6 ROBOT SYSTEM - RP6 CONTROL M256 Examples
 * ****************************************************************************
 * Example: I2C-EEPROM and WIFI Interface Example
 * Author(s): Dirk
 * ****************************************************************************
 * Description:
 * This program writes and reads data to/from an external I2C-EEPROM.
 * It writes the read data to the PC with the WIFI interface
 * and shows a running light at the end.
 *
 * The following EEPROM types may be used:
 *  EEPROM Size:  Chip              Pagesize
 *  -   32 kbit:  ST24LC32A            32
 *  -   64 kbit:  ST24LC64             32
 *  -  128 kbit:  ST24LC128            64
 *  -  256 kbit:  ST24LC256            64
 *  -  512 kbit:  ST24LC512           128
 *  - 1024 kbit:  AT24LC1024          256
 *
 * An external I2C-EEPROM can be used for Datalogging or as program
 * memory for Bytecode Interpreters (Java VMs for example NanoVM).
 *
 * ############################################################################
 * The Robot does NOT move in this example! You can simply put it on a table
 * next to your PC and you should connect it to the PC via the USB Interface!
 * You should also connect to it via WIFI.
 * ############################################################################
 * ****************************************************************************
 */

/*****************************************************************************/
// Includes:

#include "RP6M256I2CeepTWI.h"		// Include the I2C-EEPROM Library

/*****************************************************************************/
// I2C Error handler

/**
 * This function gets called automatically if there was an I2C Error like
 * the slave sent a "not acknowledge" (NACK, error codes e.g. 0x20 or 0x30).
 * The most common mistakes are:
 *   - using the wrong address for the slave
 *   - slave not active or not connected to the I2C-Bus
 *   - too fast requests for a slower slave
 * Be sure to check this if you get I2C errors!
 */
void I2C_transmissionError(uint8_t errorState)
{
	writeString_P_WIFI("\nI2C ERROR - TWI STATE: 0x");
	writeInteger_WIFI(errorState, HEX);
	writeChar_WIFI('\n');
}

/*****************************************************************************/

// Our read and write Buffers:
uint8_t write_buffer[I2C_EEPROM_PAGESIZE];
#define DOUBLE_PAGESIZE (I2C_EEPROM_PAGESIZE * 2)
uint8_t read_buffer[DOUBLE_PAGESIZE];

/*****************************************************************************/
// Main function - The program starts here:

int main(void)
{
	initRP6M256();    // Always call this first! The Processor will not work
					  // correctly otherwise.

	I2CTWI_initMaster(100); // Initialize the TWI Module for Master operation
							// with 100kHz SCL Frequency

	// Register the event handlers:
	I2CTWI_setTransmissionErrorHandler(I2C_transmissionError);

	// ---------------------------------------
	// Write messages to the WIFI Interface
	// (here it is a RP6v2 text logo):
	writeString_P_WIFI("\n\n   _______________________\n");
	writeString_P_WIFI("   \\| RP6  ROBOT SYSTEM |/\n");
	writeString_P_WIFI("    \\_-_-_-_-_-_-_-_-_-_/\n\n");

	writeString_P_WIFI("RP6v2-M256-WIFI. I2C-EEPROM.\n");
	writeString_P_WIFI("Read/Write! Example Program!\n");
	writeString_P_WIFI("\nLet's go! :)\n");

	setLEDs(0b1111);
	mSleep(500);
	setLEDs(0b0000);

	mSleep(1000);

	writeString_P_WIFI("\nReading memory before write operation:\n");

	// We read some bytes of the EEPROM to show what the EEPROM Values
	// were before we wrote any data to them:
	I2C_EEPROM_readBytes(0, &read_buffer[0], I2CTWI_BUFFER_REC_SIZE);


	// And now we output the read data on the WIFI interface:
	uint8_t cnt;
	for(cnt = 0; cnt < I2CTWI_BUFFER_REC_SIZE; cnt++)
	{
		writeInteger_WIFI(read_buffer[cnt], DEC);
		writeChar_WIFI(',');
	}
	writeString_P_WIFI("\nDone!\n");


	writeString_P_WIFI("\n\nWriting EEPROM memory:\n");

	// Prepare buffer with some test data and output
	// this on the WIFI interface:
	for(cnt = 0; cnt < I2CTWI_BUFFER_SIZE; cnt++)
	{
		write_buffer[cnt] = cnt;
		writeInteger_WIFI(write_buffer[cnt], DEC);
		writeChar_WIFI(',');
	}

	// Write the Buffer to the EEPROM:
	I2C_EEPROM_writeBytes(0, &write_buffer[0], I2CTWI_BUFFER_SIZE);
	// If you use a 256 kbit EEPROM (ST24LC256, 24LC256)
	// you can only write 64 Bytes at once. 64 Bytes
	// is the page size. You can not write across the
	// page boundaries in a single write - then you need to
	// split the writes up.
	// s. EEPROM Datasheet for more details on this!

	writeString_P_WIFI("\nDone!\n\nReading written memory:\n");

	// To verify that we have really written the data correctly,
	// we read the area of the memory:
	I2C_EEPROM_readBytes(0, &read_buffer[0], I2CTWI_BUFFER_REC_SIZE);
	// (You can read as many databytes from the EEPROM as you
	// like - there is no need to observe page boundaries like it
	// is neccessary for write operations...)

	// And now we output the read data on the WIFI interface:
	for(cnt = 0; cnt < I2CTWI_BUFFER_REC_SIZE; cnt++)
	{
		writeInteger_WIFI(read_buffer[cnt], DEC);
		writeChar_WIFI(',');
	}
	writeString_P_WIFI("\nDone!\n");

	// -------------------------------------------

	// We can also write one single byte:
	writeString_P_WIFI("\nWriting 128 to byte with address 4:\n");
	I2C_EEPROM_writeByte(4, 128);
	writeString_P_WIFI("Done!\n");

	// And we can read single bytes directly - step by step
    // with the function I2C_EEPROM_readByte:

	writeString_P_WIFI("\nReading written memory - step by step:\n");
	for(cnt = 0; cnt < (DOUBLE_PAGESIZE - 1); cnt++)
	{
		writeInteger_WIFI(I2C_EEPROM_readByte(cnt), DEC);
		writeChar_WIFI(',');
	}
	writeString_P_WIFI("\nDone!\n");
/*
	// Clear the first 2 used pages of the EEPROM after the test:
	writeString_P_WIFI("\nClearing the 1st 2 EEPROM pages - step by step:\n");
	for(cnt = 0; cnt < DOUBLE_PAGESIZE; cnt++) {
		I2C_EEPROM_writeByte(cnt, 255);
	}
	writeString_P_WIFI("Done!\n");
*/
	writeString_P_WIFI("\nEEPROM TEST\n");
	writeString_P_WIFI("DONE!\n");
	// Now we just show a running light...
	startStopwatch1();

	uint8_t runLEDs = 1;
	uint8_t dir = 0;

	while(true)
	{
		if (getStopwatch1() > 100) {
			setLEDs(runLEDs);
			if (dir == 0)
				runLEDs <<= 1;
			else
				runLEDs >>= 1;
			if (runLEDs > 7)
				dir = 1;
			else if (runLEDs < 2)
				dir = 0;
			setStopwatch1(0);
		}
	}
	return 0;
}


Siehe auch


Quellen


Autoren

--Dirk 15:33, 11. Jan 2015 (CET)


LiFePO4 Speicher Test
